Item # JB-2

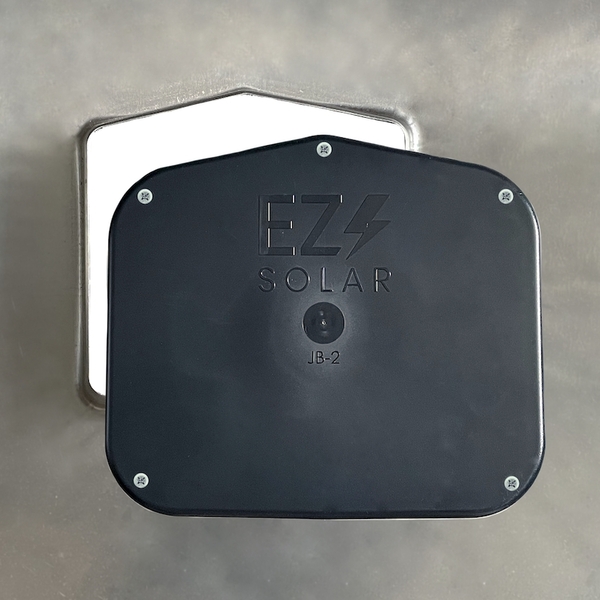

PV Junction Box for Tile Roofs
Click image to enlarge
Item # JB-2
PV Junction Box for Tile Roofs
- UM: EA
- Brand: EZ SOLAR

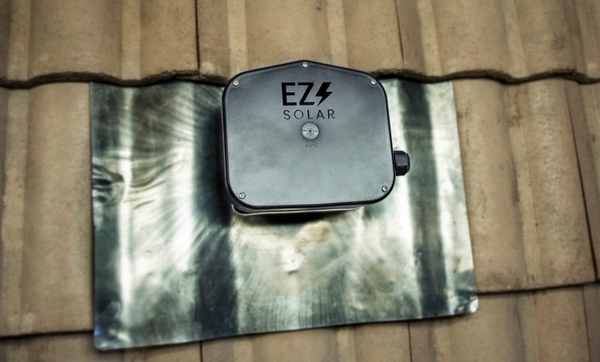

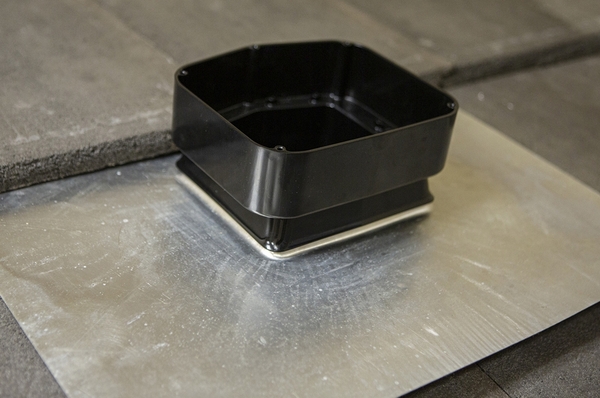

Solar installers have patiently waited for a solution to install junction boxes on tile roofs. The wait is over! The EZ Solar JB-2™ integrates with most Flat, Spanish and W-Shaped tiles. The innovative box design allows the box to securely fasten to the roof deck.
- No Leaking

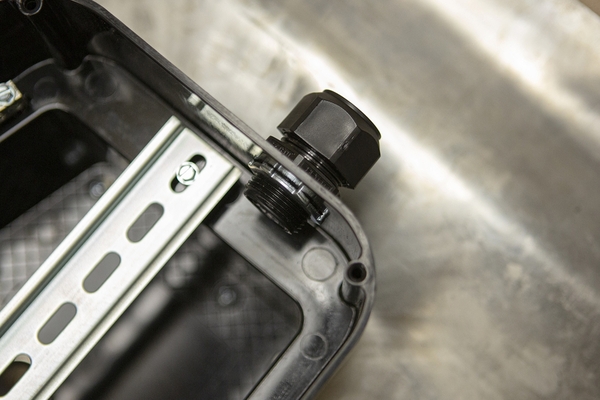

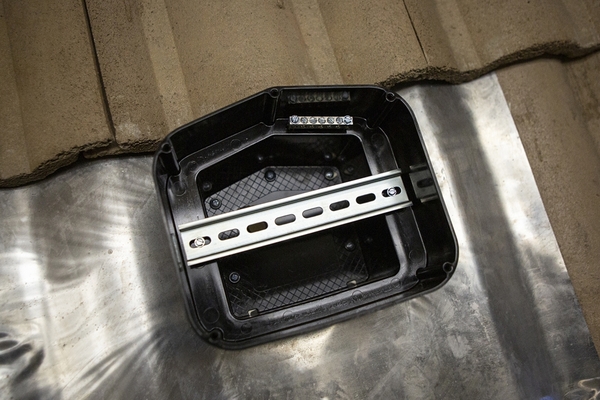

- Revolutionary Din Rail Positioning

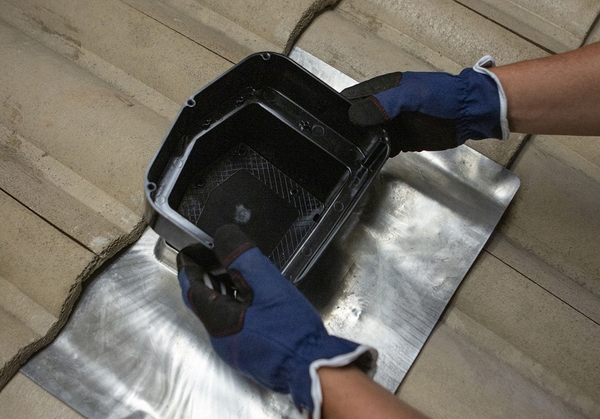

- Fast and easy installation
Installation Instructions:
Specifications
| Usage | Tile Roofs |
| Maximum Voltage | 1,000 Volts |
| Maximum Current | 120 Amps |
| Allowable Wire | 14 AWG - 6 AWG |
| Enclosure Rating | Type 3R |
| Ambient Operating Conditions | -35 C - +75 C |
