Item # 2864
SUB 1000 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.24792 |
| EA | 100 | $0.15495 |
| EA | 200 | $0.13774 |
| EA | 500 | $0.12396 |
| EA | 1,000 | $0.11269 |
| EA | 2,000 | $0.10330 |
| EA | 5,000 | $0.09536 |
| EA | 10,000 | $0.08854 |
| EA | 25,000 | $0.07748 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 2864
SUB 1000 BLACK
- UM: EA
- Weight: 0.0018
- Brand: HEYCO PRODUCTS

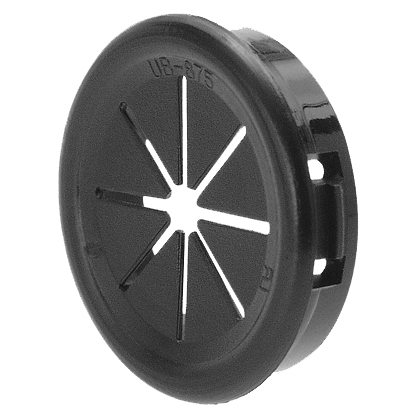

- Shorty Universal Bushing Item Number 2864 fits mounting hole diameter 1.000" (25.4 mm)
- For use in mounting panels .062" (1.6 mm) and thinner.
- Absorb vibration and cushion and insulate cables, tubing, hoses or shafts with limited internal clearance.
- Flexible shutters adjust to accommodate and support any shape from .125" (3.2 mm) to a maximum cable/bundle diameter of .750" (19.0 mm).
- Fingertip pressure snap-locks the bushing into its mounting hole.
Specifications
| Description | SUB 1000 |
| Color | Black |
| Mounting Hole Diameter (in) | 1.000 |
| Mounting Hole Diameter (mm) | 25.4 |
| Maximum Inside Dia. (in) | 0.75 |
| Maximum Inside Dia. (mm) | 19.0 |
| A: Head Diameter (in) | 1.06 |
| A: Head Diameter (mm) | 27.0 |
| B: Overall Height (in) | 0.25 |
| B: Overall Height (mm) | 6.4 |
