Item # BPFE-21MM

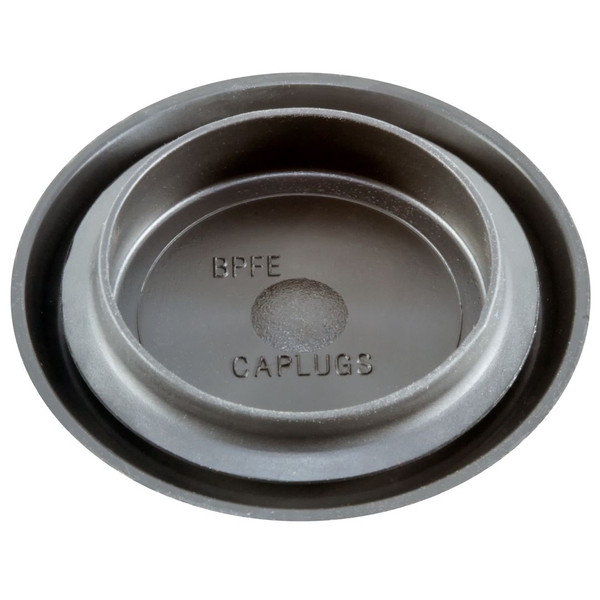

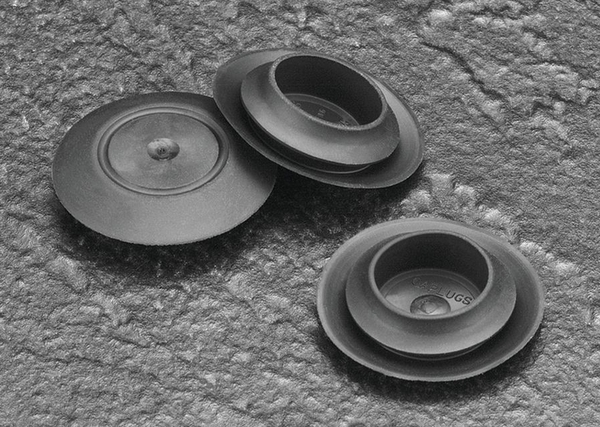

21MM Ergonomic Button Plug - Flush
Click image to enlarge
Item # BPFE-21MM
21MM Ergonomic Button Plug - Flush
- UM: EA
- Weight: 0.0040
- Brand: CAPLUGS
Specifications
| Material | FlexTemp (Thermoplastic Rubber) |
| Standard Color | Black |
| To Fit Hole Size (in) | .807 - .866 |
| To Fit Hole Size (mm) | 20.50 - 22.00 |
| To Fit Metal Thickness (in) | .031 - .079 |
| To Fit Metal Thickness (mm) | .80 - 2.00 |

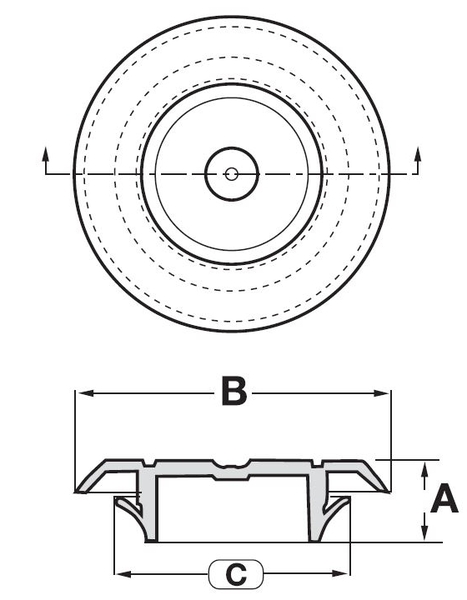

| A Dimension (in) | 0.307 |
| A Dimension (mm) | 7.8 |
| B Dimension (in) | 1.260 |
| B Dimension (mm) | 32 |
| C Dimension (in) | 0.957 |
| C Dimension (mm) | 24.3 |
Documents
Alternate Products
- 9693
- SMP E-M21 BLACK
$0.28500 / EA
×
