Item # GRO-1-UL

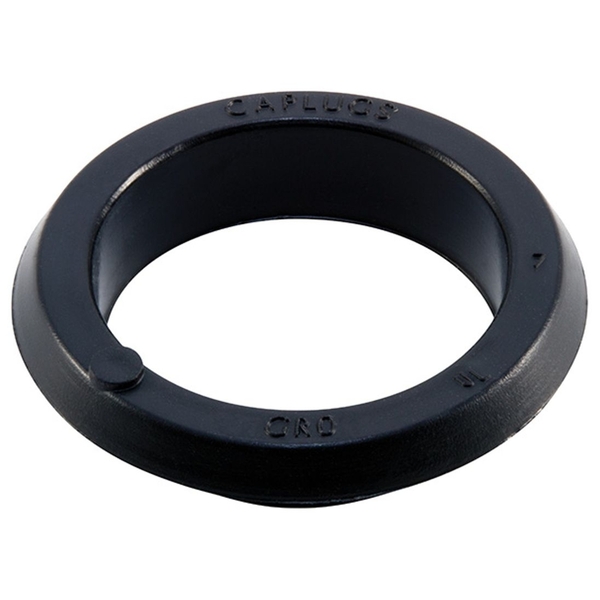

Thermoplastic Rubber Sheet Metal Grommet
Click image to enlarge
Item # GRO-1-UL
Thermoplastic Rubber Sheet Metal Grommet
- UM: EA
- Weight: 0.0030
- Brand: CAPLUGS
Specifications
| Material | FlexTemp (Thermoplastic Rubber) |
| Standard Color | Black |
| To Fit Hole Size (in) | 1.00 |
| To Fit Hole Size (mm) | 25.40 |
| To Fit Metal Thickness (in) | .03 - .08 |
| To Fit Metal Thickness (mm) | .76 ? 2.03 |

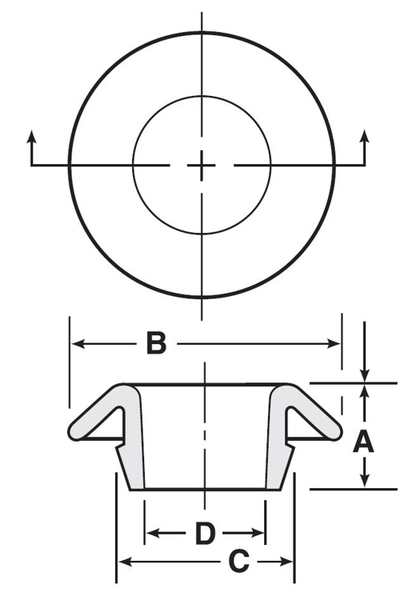

| A Dimension (in) | 0.35 |
| A Dimension (mm) | 8.89 |
| B Dimension (in) | 1.32 |
| B Dimension (mm) | 33.53 |
| C Dimension (in) | 1.04 |
| C Dimension (mm) | 26.42 |
| D Dimension (in) | 0.89 |
| D Dimension (mm) | 22.61 |
Documents
Alternate Products
- G1509
- TG 1000 BLACK
Add to Cart to Get Quote
×
