Item # T-44

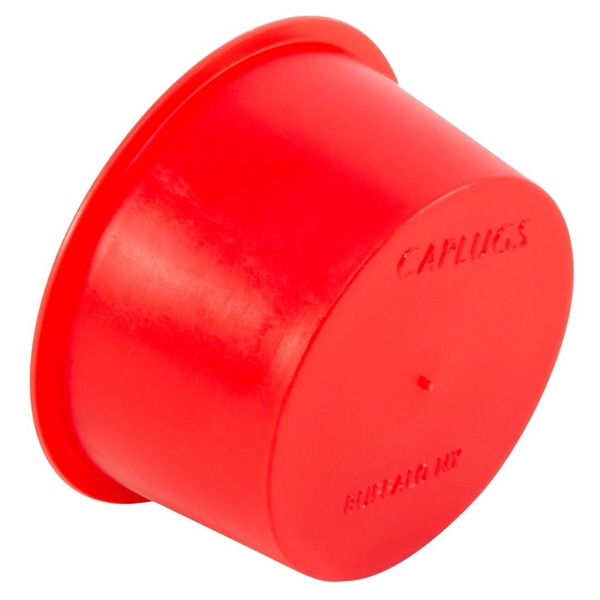

Red Tapered Cap / Plug LDPE
Click image to enlarge
Item # T-44
Red Tapered Cap / Plug LDPE
- UM: EA
- Weight: 0.0180
- Brand: CAPLUGS
Specifications
| Material | Low-Density Polyethylene |
| Standard Color | Red |
| Applicable Specs | NAS 834 |

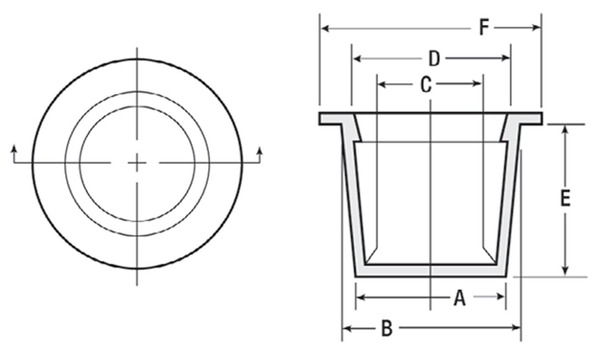

| A Dimension (in) | 2.641 |
| A Dimension (mm) | 67.08 |
| B Dimension (in) | 2.790 |
| B Dimension (mm) | 70.87 |
| C Dimension (in) | 2.579 |
| C Dimension (mm) | 65.51 |
| D Dimension (in) | 2.728 |
| D Dimension (mm) | 69.29 |
| E Dimension (in) | 0.75 |
| E Dimension (mm) | 19.05 |
| F Dimension (in) | 2.94 |
| F Dimension (mm) | 74.68 |
Documents
Alternate Products
- G5106
- TCP 279-273 RED
