Item # 32.6020-64100
PV-CZM-64100 - Crimping Pliers
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $566.98503 |
| EA | 5 | $529.18603 |
| EA | 10 | $508.83272 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 32.6020-64100

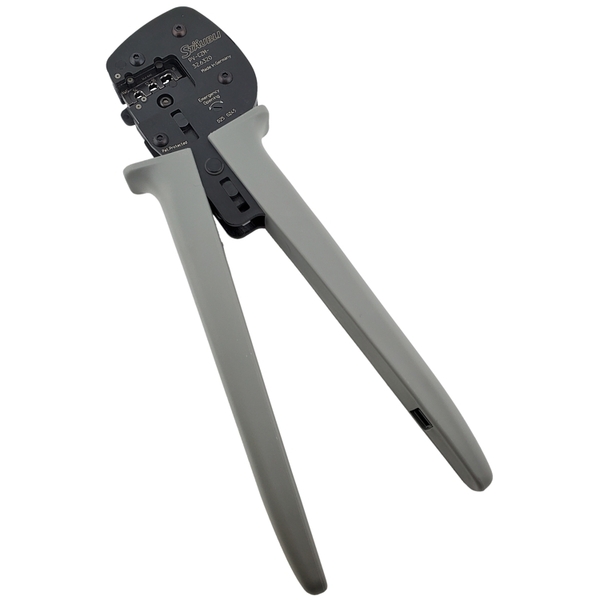

PV-CZM-64100 - Crimping Pliers
- UM: EA
- Weight: 2.1000
- Brand: STAUBLI
Crimping pliers required for UL compliance.
Tools includes 2 die/locator sets. Die 32.6021-63100 and locator 32.6082 pre-installed and die 32.6021-6100 with locator 32.6085 included.

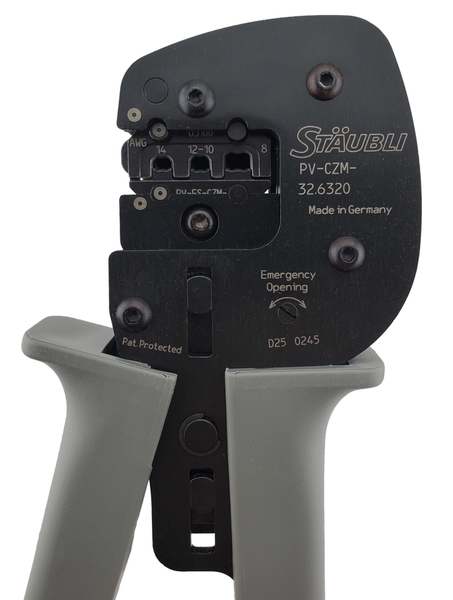

Pre-Installed:

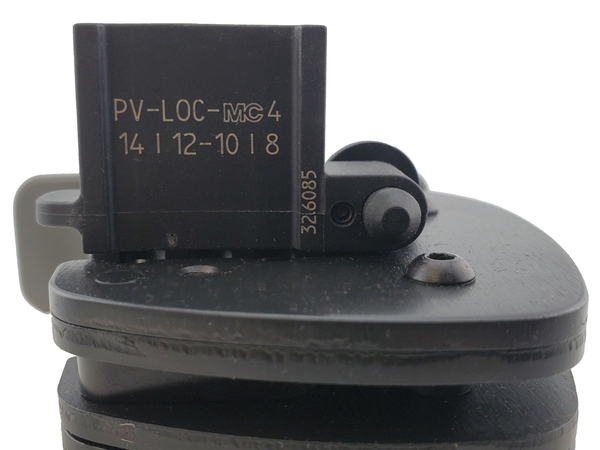

The combination of crimping die 32.6021-63100 and locator 32.6085 is suitable for crimping of closed crimp contacts (O-Crimp) with wire sizes 14 AWG, 12 AWG, 10 AWG, 8 AWG.
Included:

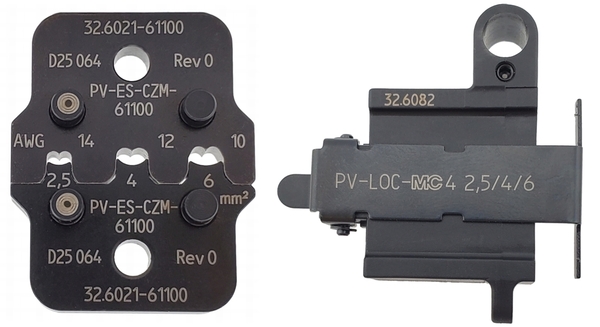

The combination of crimping die 32.6021-61100 and locator 32.6082 is suitable for crimping of open crimp contacts (B-Crimp) with wire sizes 2.5 mm², 4 mm², 6 mm².
Specifications
| Conductor Cross Section (AWG) | #8, #10, #12, #14 |
| Conductor Cross Section (mm) | 2.5, 4, 6 |
| Crimp Contact Type | See Description |
| Replacement Die No. | See Description |
| Replacement Locater No. | See Description |
