Item # 0766-41AD
SolaDeck PV Junction Box for Deep Tile & Slate Roofs
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $149.91667 |
| EA | 4 | $138.38462 |
| EA | 8 | $130.36232 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 0766-41AD

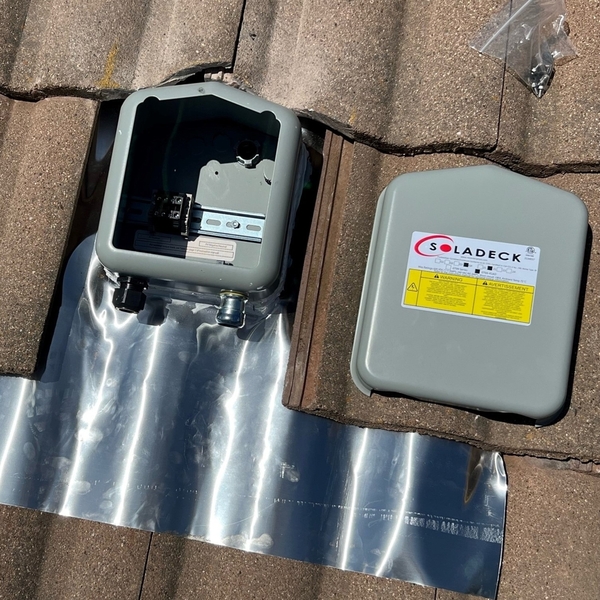

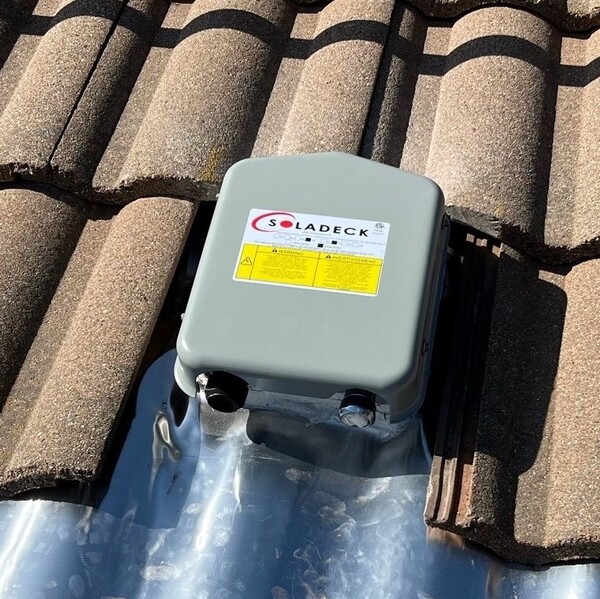

SolaDeck PV Junction Box for Deep Tile & Slate Roofs
- UM: EA
- Weight: 11.4000
- Brand: SOLADECK

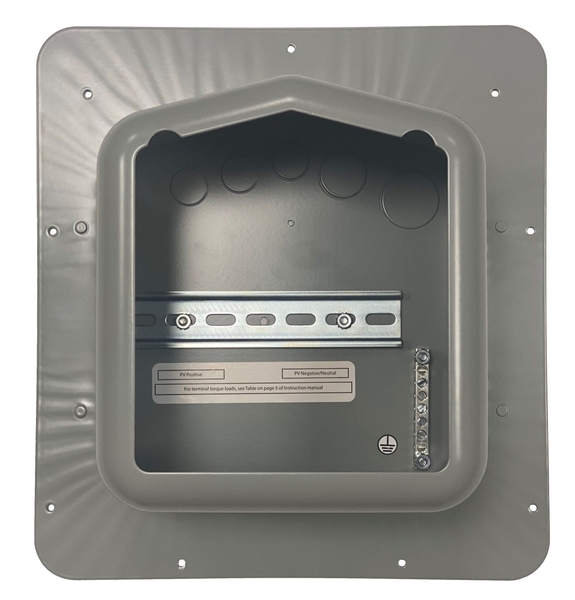

- Base and cover stamped from galvanized steel
- 7" Din rail and ground block factory installed
- 6" height for tile roof installation
- 2/12 – 12/12 roof slopes
- Five roof deck knockouts, size (3) 1/2", (1) 3/4" and (1) 1"
- ETL listed and labeled
- Conforms to the UL1741 standard, Nema Type 3R
- CSA C22.2 No. 290
- 600 VDC/115A, 240 VAC/60A
- Ambient temperature rating (-35°C) – (75°C)
Specifications
| Usage | Deep Tile or Slate Roof |
| Material | G90 Galvanized Steel |
| Color | Powder Coated Gray |
| Approx Height (in) | 6.0 |
| Interior Space | 432 cubic inches |
| Maximum Voltage | 600 VDC/240 VAC |
| Maximum Current | 115 Amps DC/60 Amps AC |
| Enclosure Rating | NEMA Type 3R |
| Ambient Temperature Rating | -35 C to +75 C |
