Item # 1063
LTBSR 875-094-330 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $1.01425 |
| EA | 100 | $0.78019 |
| EA | 200 | $0.69948 |
| EA | 500 | $0.67617 |
| EA | 1,000 | $0.57957 |
| EA | 2,000 | $0.54093 |
Add to Cart to Request Quote for Larger Qtys

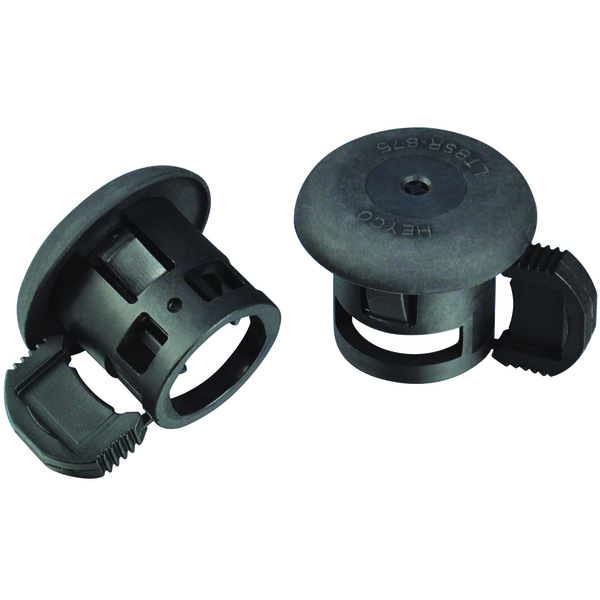

Click image to enlarge
Item # 1063
LTBSR 875-094-330 BLACK
- UM: EA
- Weight: 0.0120
- Brand: HEYCO PRODUCTS
- Liquid Tight Strain Relief Bushing Item Number 1063 (Black) is for cable diameters ranging from .280 to .330" (7.1 to 8.4 mm).
- These low profile co-molded nylon and elastomer parts function as a Liquid Tight Strain Relief with a cable.
- cULus approved under UL 514B.
- Low profile design: height above panel is less than .188" (4.8 mm).
- Can be pre-assembled to the cable prior to installation.
- Assembles to cables with a simple hand plier for easy installation.
- Smooth, rounded interior edges for ease of installation.
- Fast and easy installation.
- We recommend using the fitting with the smallest maximum diameter that will fit your application.
- Meet UL strain relief requirements without bending or kinking the cable.
- Patent # 10573436
Specifications
| Description | LTBSR 875-094-330 |
| Color (Membrane / Body) | Black / Black |
| Cable Diameter Range (in) | 0.28 - 0.33 |
| Cable Diameter Range (mm) | 7.1 - 8.4 |
| A: Mounting Hole Diameter (in) | 0.875 |
| A: Mounting Hole Diameter (mm) | 22.2 |
| Panel Thickness Range (in) | 0.032 - 0.094 |
| Panel Thickness Range (mm) | 0.8 - 2.4 |
| C: Head Diameter (in) | 1.29 |
| C: Head Diameter (mm) | 32.8 |
| D: Overall Height (in) | 0.99 |
| D: Overall Height (mm) | 25.1 |
| Use with Plier No. | 0029A |
