Item # 12131
CH SE-1722 NATURAL
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.17168 |
| EA | 500 | $0.14153 |
| EA | 1,000 | $0.12143 |
| EA | 2,000 | $0.10887 |
| EA | 5,000 | $0.10050 |
Add to Cart to Request Quote for Larger Qtys

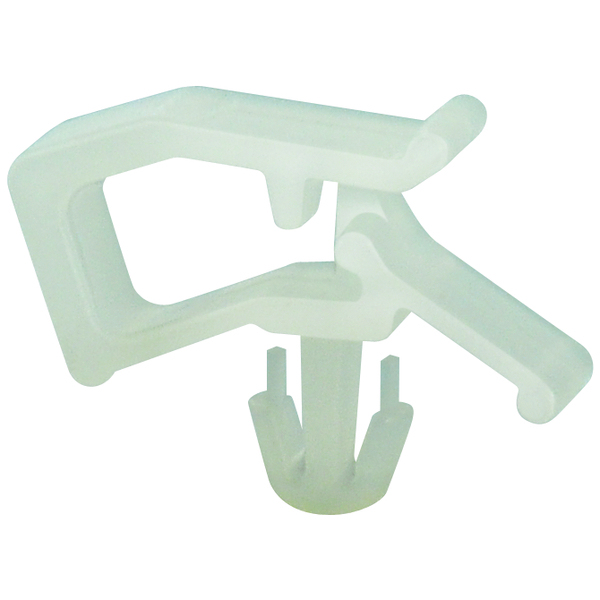

Click image to enlarge
Item # 12131
CH SE-1722 NATURAL
- UM: EA
- Weight: 0.0006
- Brand: HEYCO PRODUCTS
Specifications
| Description | CH SE-1722 |
| Color | Natural |
| Panel Thickness Range (in) | .047 - .078 |
| Panel Thickness Range (mm) | 1.2 - 2.0 |
| Wire Capacity (in) | .17 x .22 |
| Wire Capacity (mm) | 4.3 x 5.5 |
| A: Length (in) | 0.590 |
| A: Length (mm) | 15.1 |
| B: Width (in) | 0.200 |
| B: Width (mm) | 5.0 |
| C: Height (in) | 0.260 |
| C: Height (mm) | 6.7 |
| Mounting Hole Diameter (in) | 0.138 |
| Mounting Hole Diameter (mm) | 3.5 |
| Style | 1 |
