Item # 14802

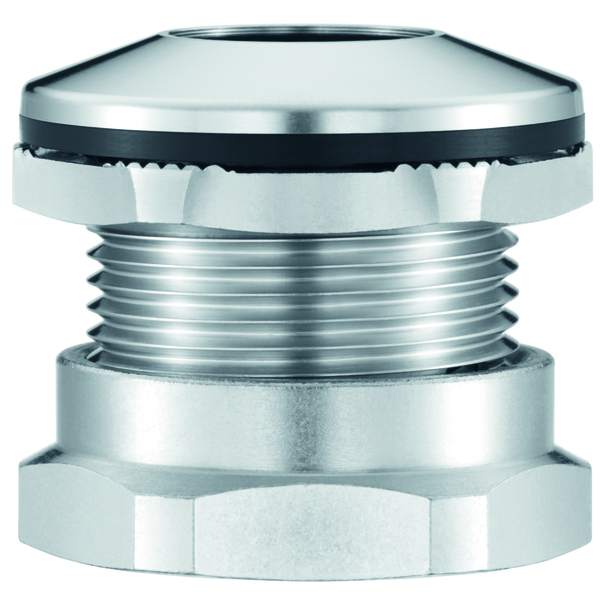

BRASS CGP M20-80
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $76.07000 |
| EA | 2 | $62.71000 |
| EA | 5 | $53.81000 |
| EA | 10 | $48.24000 |
| EA | 25 | $44.53200 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 14802
BRASS CGP M20-80
- UM: EA
- Weight: 0.1600
- Brand: HEYCO PRODUCTS
Specifications
| Description | BRASS CGP M20-80 |
| Cable Diameter Range (in) | .236 - .315 |
| Cable Diameter Range (mm) | 6.0 - 8.0 |
| Thread Size | M20 x 1.5 |
| Gland Type | Standard Gland |
| A: Clearance Hole Diameter (in) | 1.063 |
| A: Clearance Hole Diameter (mm) | 27.0 |
| B: Head Height (in) | 0.18 |
| B: Head Height (mm) | 4.5 |
| C: Length Below Panel (in) | 0.91 |
| C: Length Below Panel (mm) | 23.0 |
| D: Wrenching Nut Flat Size (in) | 0.85 |
| D: Wrenching Nut Flat Size (mm) | 24.0 |
Documents
×
