Item # 1958

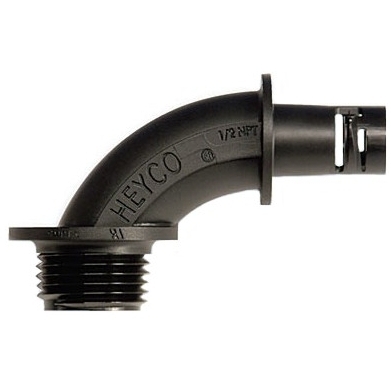

HF3C 1-90R BLACK NO NUT
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $3.74820 |
| EA | 50 | $2.85440 |
| EA | 100 | $2.29220 |
| EA | 200 | $1.93180 |
| EA | 500 | $1.72990 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 1958
HF3C 1-90R BLACK NO NUT
- UM: EA
- Weight: 0.0800
- Brand: HEYCO PRODUCTS
Specifications
| Description | HF3C 1-90R |
| Fits Conduit / Tubing Trade Size | 1 |
| Thread Size | 1 NPT |
| A: Clearance Hole (in) | 1.375 |
| A: Clearance Hole (mm) | 34.9 |
| B: Maximum O.A. Height (in) | 2.67 |
| B: Maximum O.A. Height (mm) | 67.8 |
| C: Maximum O.A. Length (in) | 3.66 |
| C: Maximum O.A. Length (mm) | 93.0 |
| D: Thread Length (in) | 0.69 |
| D: Thread Length (mm) | 17.5 |
| E: Flange Diameter (in) | 1.80 |
| E: Flange Diameter (mm) | 45.7 |
Documents
Suggested Related Products
- 8467
- NLN 1 NPT BLACK
$1.14960 / EA
×
