Item # 2055
UB 500 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.13600 |
| EA | 100 | $0.10880 |
| EA | 500 | $0.07771 |
| EA | 1,000 | $0.05440 |
| EA | 2,000 | $0.04945 |
| EA | 5,000 | $0.04533 |
| EA | 7,500 | $0.04185 |
| EA | 15,000 | $0.03886 |
| EA | 30,000 | $0.03627 |
| EA | 60,000 | $0.03400 |
Add to Cart to Request Quote for Larger Qtys

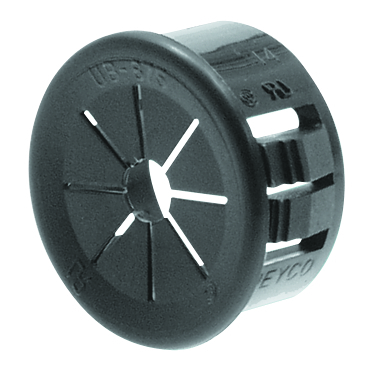

Click image to enlarge
Item # 2055
UB 500 BLACK
- UM: EA
- Weight: 0.0019
- Brand: HEYCO PRODUCTS
- Universal Bushing Item Number 2055 fits mounting hole diameter 0.500" (12.7 mm)
- Flexible shutters adjust to accommodate and support any shape from .125" (3.2 mm) to a maximum cable/bundle diameter of 0.31 (7.6 mm).
- Absorb vibration and cushion and insulate cables, tubing, hoses or shafts.
- Locking fingers in fractional increments up to the maximum panel thickness 0.125 in (3.2 mm) thick.
- Fingertip pressure snap-locks the bushing into its mounting hole.
Specifications
| Description | UB 500 |
| Color | Black |
| Panel Thickness Max. (in) | 0.125 |
| Panel Thickness Max. (mm) | 3.2 |
| Mounting Hole Diameter (in) | 0.500 |
| Mounting Hole Diameter (mm) | 12.7 |
| Max. Inside Dia. (in) | 0.31 |
| Max. Inside Dia. (mm) | 7.6 |
| A: Head Diameter (in) | 0.60 |
| A: Head Diameter (mm) | 15.2 |
| B: Overall Height (in) | 0.39 |
| B: Overall Height (mm) | 9.8 |
