Item # 2196SP
OCUB 1250 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.48633 |
| EA | 25 | $0.36475 |
| EA | 50 | $0.32422 |
| EA | 100 | $0.29180 |
| EA | 200 | $0.26527 |
| EA | 500 | $0.24317 |
| EA | 1,000 | $0.22446 |
| EA | 2,500 | $0.20843 |
| EA | 5,000 | $0.19453 |
| EA | 12,500 | $0.18238 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge

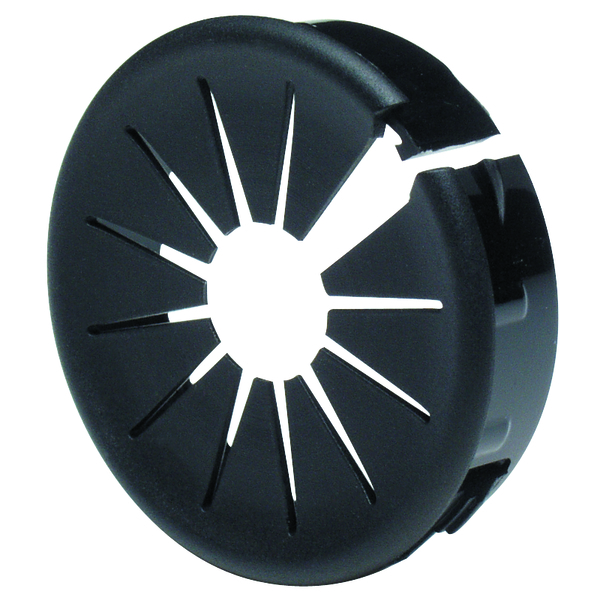

Item # 2196SP
OCUB 1250 BLACK
- UM: EA
- Weight: 0.0048
- Brand: HEYCO PRODUCTS
Specifications
| Description | OCUB 1250 |
| Color | Black |
| Panel Thickness Max. (in) | 0.125 |
| Panel Thickness Max. (mm) | 3.2 |
| Mounting Hole Diameter (in) | 1.250 |
| Mounting Hole Diameter (mm) | 31.8 |
| Maximum Inside Dia. (in) | 0.94 |
| Maximum Inside Dia. (mm) | 23.8 |
| A: Head Diameter (in) | 1.44 |
| A: Head Diameter (mm) | 36.6 |
| B: Overall Height (in) | 0.41 |
| B: Overall Height (mm) | 10.3 |
Documents
×
