Item # 2836N
B 750-625N BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.16933 |
| EA | 50 | $0.14514 |
| EA | 100 | $0.11289 |
| EA | 200 | $0.10160 |
| EA | 500 | $0.09236 |
| EA | 1,000 | $0.08467 |
| EA | 2,000 | $0.07815 |
| EA | 5,000 | $0.07257 |
| EA | 10,000 | $0.06773 |
| EA | 25,000 | $0.06350 |
Add to Cart to Request Quote for Larger Qtys

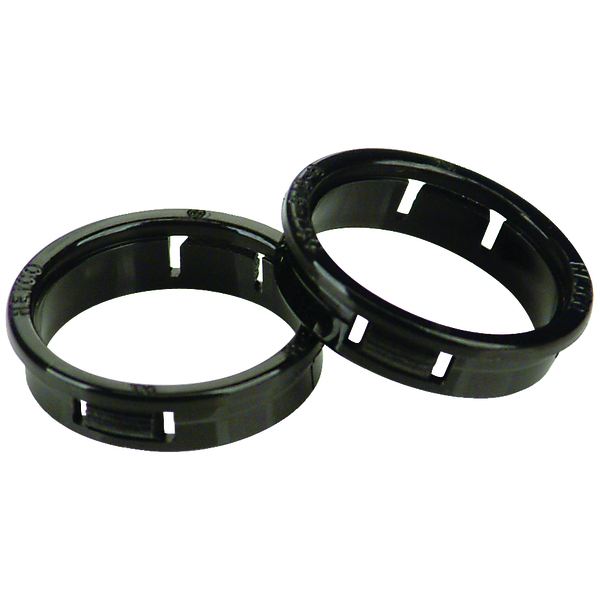

Click image to enlarge
Item # 2836N
B 750-625N BLACK
- UM: EA
- Weight: 0.0020
- Brand: HEYCO PRODUCTS
- Thin Panel Bushing Item Number 2836N fits mounting hole diameter 0.750" (19.1 mm)
- For use in panels as thin as .020 inches
- Convert raw-edged holes to smooth, neat, insulated holes.
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
- Locking fingers snap into holes with fingertip pressure.
- Five locking fingers in fractional increments up to the maximum panel thickness .064 in (1.6 mm)
- Withstand a push back force of greater than 35 pounds.
Specifications
| Description | B 750-625N |
| Color | Black |
| Panel Thickness Max. (in) | 0.064 |
| Panel Thickness Max. (mm) | 1.6 |
| Mounting Hole Diameter (in) | 0.750 |
| Mounting Hole Diameter (mm) | 19.1 |
| A: Inside Diameter (in) | 0.63 |
| A: Inside Diameter (mm) | 15.9 |
| B: Head Diameter (in) | 0.83 |
| B: Head Diameter (mm) | 21.1 |
| C: Overall Height (in) | 0.25 |
| C: Overall Height (mm) | 6.4 |
