Item # 32.6021-61100
PV-ES-CZM-61100 - MC4 Crimp Insert Die Set
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $226.00000 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 32.6021-61100

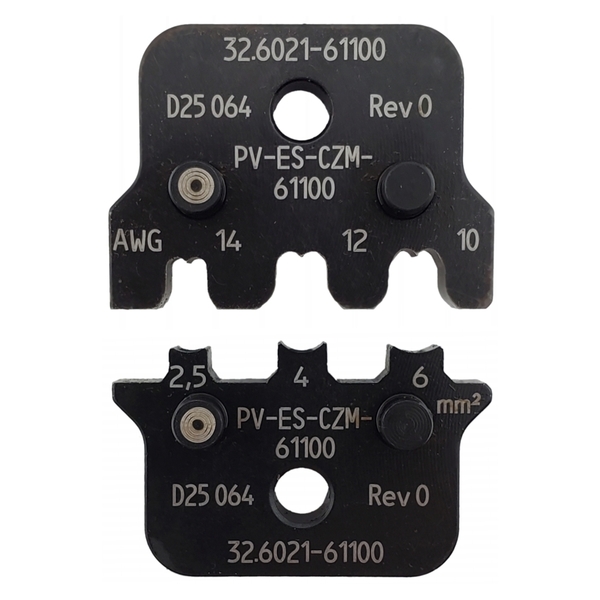

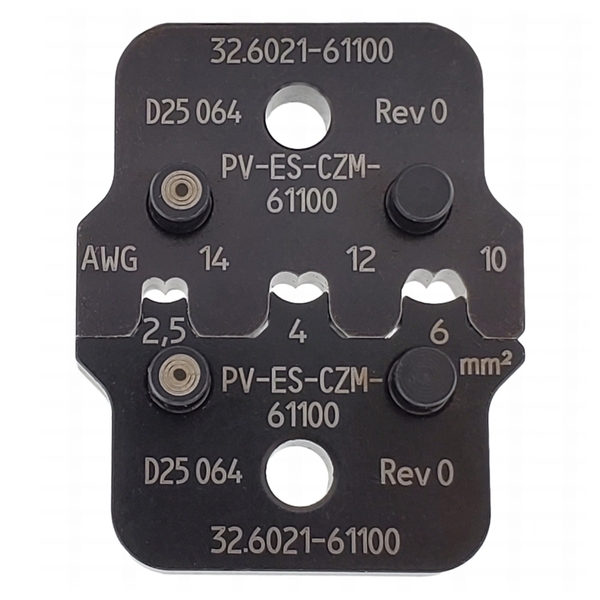

PV-ES-CZM-61100 - MC4 Crimp Insert Die Set
- UM: EA
- Weight: 0.0022
- Brand: STAUBLI

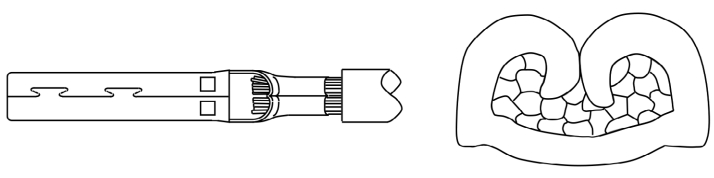

This crimp die set is specified for open crimp (B-Crimp) contacts 2.5 mm², 4 mm², 6 mm² (or 14/12/10 AWG), which allows for versatility in your requirements. It will fit into Stäubli MC4 Crimp Pliers (SKU # 32.6020-64100).
The locator "PV-LOC-MC4 2.5/4/6" is not included but may be purchased separately here.
The locator "PV-LOC-MC4 2.5/4/6" is not included but may be purchased separately here.
Specifications
| Item Type | Die Set |
| Compatible With | 32.6020-64100 |
| Specified For | Open Crimp (B-Crimp) contacts 2.5 mm², 4 mm², 6 mm² |
