Item # 3232
LTF 1/2 NPT GRAY NO NUT
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $1.41604 |
| EA | 25 | $1.06203 |
| EA | 50 | $0.94403 |
| EA | 100 | $0.84962 |
| EA | 200 | $0.77239 |
| EA | 500 | $0.70802 |
| EA | 1,500 | $0.65356 |
| EA | 5,000 | $0.60687 |
| EA | 10,000 | $0.56642 |
| EA | 20,000 | $0.53102 |
Add to Cart to Request Quote for Larger Qtys

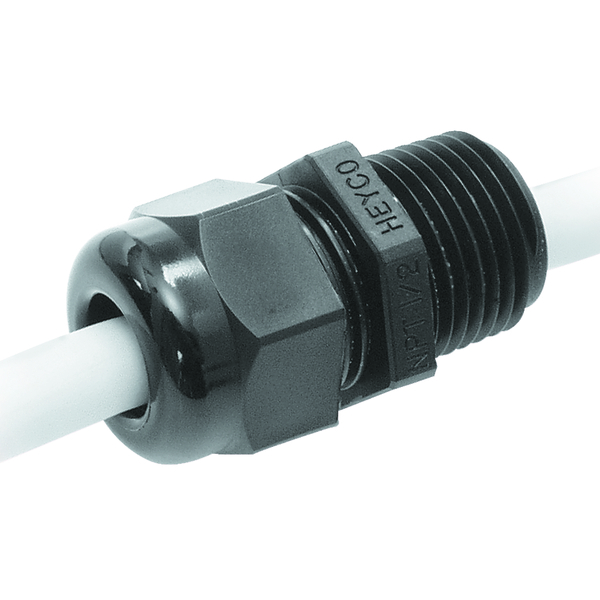

Click image to enlarge
Item # 3232
LTF 1/2 NPT GRAY NO NUT
- UM: EA
- Weight: 0.0280
- Brand: HEYCO PRODUCTS
Specifications
| Description | LTF 1/2 |
| Color | Gray |
| Cable Diameter Range (in) | .170 - .450 |
| Cable Diameter Range (mm) | 4.3 - 11.4 |
| Thread Size | 1/2 NPT |
| Locknut | Not Included |
| A: Clearance Hole Diameter (in) | 0.875 |
| A: Clearance Hole Diameter (mm) | 22.2 |
| B: Maximum O.A. Length (in) | 1.72 |
| B: Maximum O.A. Length (mm) | 43.7 |
| C: Thread Length (in) | 0.62 |
| C: Thread Length (mm) | 15.7 |
| D: Wrenching Nut Thickness (in) | 0.20 |
| D: Wrenching Nut Thickness (mm) | 5.1 |
| E: Wrenching Nut Flat Size (in) | 0.95 |
| E: Wrenching Nut Flat Size (mm) | 24.1 |
Documents
Suggested Related Products
- 8464
- NLN 1/2 NPT GRAY
$0.35114 / EA
×
