Item # 3239
FLEX LTF 3/4 NPT BLACK NO NUT
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $4.31923 |
| EA | 5 | $3.23942 |
| EA | 10 | $2.87949 |
| EA | 25 | $2.59154 |
| EA | 50 | $2.35594 |
| EA | 100 | $2.15962 |
| EA | 250 | $1.99349 |
| EA | 500 | $1.85110 |
| EA | 1,000 | $1.72769 |
| EA | 1,500 | $1.61971 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge

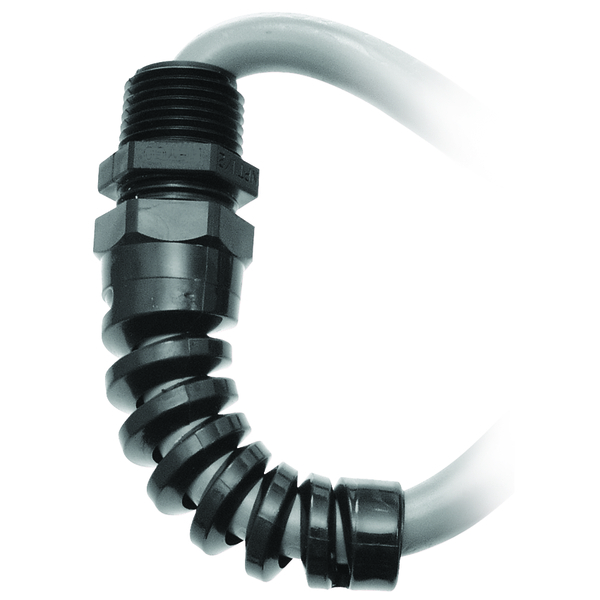

Item # 3239
FLEX LTF 3/4 NPT BLACK NO NUT
- UM: EA
- Weight: 0.1080
- Brand: HEYCO PRODUCTS
Specifications
| Description | FLEX LTF 3/4 |
| Color | Black |
| Cable Diameter Range (in) | .450 - .709 |
| Cable Diameter Range (mm) | 11.4 - 18.0 |
| Thread Size | 3/4 NPT |
| Locknut | Not Included |
| A: Clearance Hole Diameter (in) | 1.068 |
| A: Clearance Hole Diameter (mm) | 27.1 |
| B: Maximum O.A. Length (in) | 5.14 |
| B: Maximum O.A. Length (mm) | 130.6 |
| C: Thread Length (in) | 0.63 |
| C: Thread Length (mm) | 16.0 |
| D: Wrenching Nut Thickness (in) | 0.23 |
| D: Wrenching Nut Thickness (mm) | 5.8 |
| E: Wrenching Nut Flat Size (in) | 1.30 |
| E: Wrenching Nut Flat Size (mm) | 33.0 |
Documents
Suggested Related Products
- 8465
- NLN 3/4 NPT BLACK
$0.61954 / EA
×
