Item # 3592
MP R-2 NATURAL
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.19250 |
| EA | 50 | $0.17111 |
| EA | 100 | $0.15400 |
| EA | 200 | $0.15400 |
| EA | 500 | $0.14000 |
| EA | 1,000 | $0.12833 |
| EA | 2,000 | $0.11846 |
| EA | 5,000 | $0.11000 |
| EA | 10,000 | $0.10267 |
| EA | 25,000 | $0.10000 |
Add to Cart to Request Quote for Larger Qtys

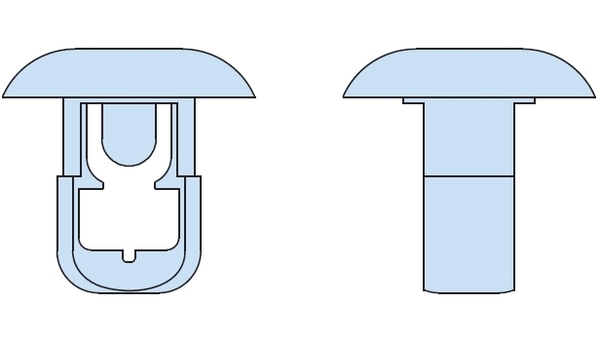

Click image to enlarge
Item # 3592
MP R-2 NATURAL
- UM: EA
- Weight: 0.0008
- Brand: HEYCO PRODUCTS
Specifications
| Description | MP R-2 |
| Color | Natural |
| Type | Reverse Button Mount |
| Max. Tensile Strength Accommodated (lbs) | 50 |
| Max. Tensile Strength Accommodated (N) | 222 |
| Mounting Hole Diameter (in) | 0.25 |
| Mounting Hole Diameter (mm) | 6.4 |
| Maximum Panel Thickness (in) | 0.13 |
| Maximum Panel Thickness (mm) | 3.2 |
| No. of Insertion Points | 2 |
| A: Dimension (in) | 0.42 |
| A: Dimension (mm) | 10.7 |
| B: Dimension (in) | 0.15 |
| B: Dimension (mm) | 3.8 |
| C: Height (in) | 0.41 |
| C: Height (mm) | 10.3 |
Documents
×
