Item # 3605
CH R-18 NATURAL
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.05775 |
| EA | 50 | $0.05133 |
| EA | 100 | $0.04620 |
| EA | 200 | $0.04620 |
| EA | 500 | $0.04200 |
| EA | 1,000 | $0.03850 |
| EA | 2,000 | $0.03554 |
| EA | 5,000 | $0.03300 |
| EA | 10,000 | $0.03080 |
| EA | 25,000 | $0.02888 |
Add to Cart to Request Quote for Larger Qtys

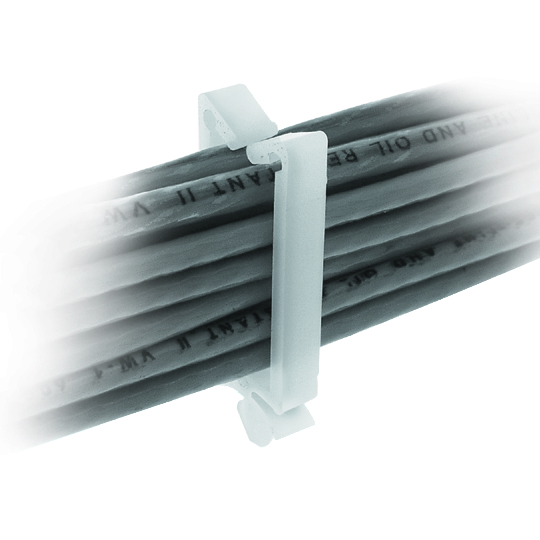

Click image to enlarge
Item # 3605
CH R-18 NATURAL
- UM: EA
- Weight: 0.0022
- Brand: HEYCO PRODUCTS
Specifications
| Description | CH R-18 |
| Color | Natural |
| Gate Type | Top Entry- Regular Gate |
| Maximum Panel Thickness (in) | 0.078 |
| Maximum Panel Thickness (mm) | 1.9 |
| Wire Capacity (in) | .44 x .38 |
| Wire Capacity (mm) | 11.1 x 9.7 |
| C: Overall Height (in) | 0.72 |
| C: Overall Height (mm) | 18.2 |
| Footprint A x B (in) | .22 x .61 |
| Footprint A x B (mm) | 5.6 x 15.5 |
| Mounting Hole Diameter (in) | 0.187 |
| Mounting Hole Diameter (mm) | 4.8 |
Documents
×
