Item # 3762
MP PM-25 NATURAL
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.23308 |
| EA | 50 | $0.21851 |
| EA | 100 | $0.19978 |
| EA | 200 | $0.18898 |
| EA | 500 | $0.17481 |
| EA | 1,000 | $0.15538 |
| EA | 2,000 | $0.13985 |
| EA | 5,000 | $0.12713 |
| EA | 10,000 | $0.11654 |
| EA | 25,000 | $0.09989 |
Add to Cart to Request Quote for Larger Qtys

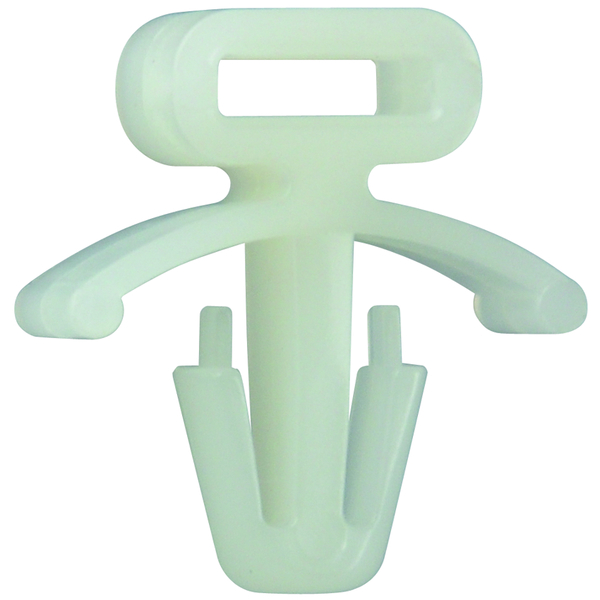

Click image to enlarge
Item # 3762
MP PM-25 NATURAL
- UM: EA
- Weight: 0.0016
- Brand: HEYCO PRODUCTS
Specifications
| Description | MP PM-25 |
| Color | Natural |
| Type | Arrowhead Mount |
| Max. Tensile Strength Accommodated (lbs) | 50 |
| Max. Tensile Strength Accommodated (N) | 222 |
| Mounting Hole Diameter (in) | 0.25 |
| Mounting Hole Diameter (mm) | 6.4 |
| Maximum Panel Thickness (in) | 0.11 |
| Maximum Panel Thickness (mm) | 2.8 |
| No. of Insertion Points | 2 |
| A: Dimension (in) | 0.63 |
| A: Dimension (mm) | 15.9 |
| B: Dimension (in) | 0.28 |
| B: Dimension (mm) | 7.1 |
| C: Height (in) | 0.69 |
| C: Height (mm) | 17.5 |
