Item # 4240
DC 50-1-M/M BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $2.36200 |
| EA | 100 | $1.72150 |
| EA | 200 | $1.35320 |
| EA | 500 | $1.12100 |
| EA | 1,000 | $0.99280 |
Add to Cart to Request Quote for Larger Qtys

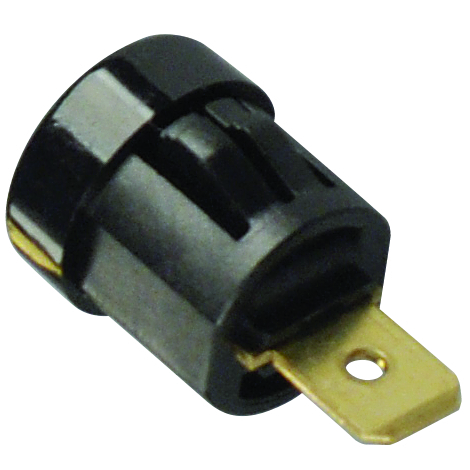

Click image to enlarge
Item # 4240
DC 50-1-M/M BLACK
- UM: EA
- Weight: 0.0280
- Brand: HEYCO PRODUCTS
- Small, snap-in polycarbonate receptacles for low cost, insulated, quick connection or disconnection of your wires, through panels, housings or detachable shrouds.
- Typical uses are data processing and vending machines, motors, power supplies, and controls.
- Non-polarized HEYConnects feature 1/4" (6.4 mm) internal brass male terminals, to mate with standard 1/4" (6.4mm) female Quick-Connects.
- Double-male configuration
- Rated for 300 Vac/Vdc @ 8.2 Amps.
Specifications
| Description | DC 50-1-M/M |
| Terminal Type | Double Male, Non-polarized |
| Number of Poles | 1 |
| Terminal Width (in) | 0.25 |
| Terminal Width (mm) | 6.4 |
| A: Mounting Hole Diameter (in) | 0.500 |
| A: Mounting Hole Diameter (mm) | 12.7 |
| B: To Prevent Rotation (in) | 0.465 |
| B: To Prevent Rotation (mm) | 11.8 |
| C: Maximum Panel Thickness (mm) | 0.125 |
| C: Maximum Panel Thickness (in) | 3.2 |
| D: Overall Length (in) | 0.94 |
| D: Overall Length (mm) | 23.9 |
