Item # 4266

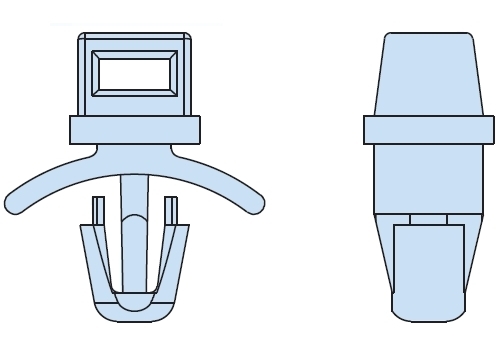

MP PM-19 NATURAL
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.17011 |
| EA | 500 | $0.14024 |
| EA | 1,000 | $0.12032 |
| EA | 2,000 | $0.10788 |
| EA | 5,000 | $0.09958 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 4266
MP PM-19 NATURAL
- UM: EA
- Weight: 0.0014
- Brand: HEYCO PRODUCTS
Specifications
| Description | MP PM-19 |
| Color | Natural |
| Type | Arrowhead Mount |
| Max. Tensile Strength Accommodated (lbs) | 50 |
| Max. Tensile Strength Accommodated (N) | 222 |
| Mounting Hole Diameter (in) | 0.19 |
| Mounting Hole Diameter (mm) | 4.8 |
| Maximum Panel Thickness (in) | 0.08 |
| Maximum Panel Thickness (mm) | 2.0 |
| No. of Insertion Points | 2 |
| A: Dimension (in) | 0.56 |
| A: Dimension (mm) | 14.3 |
| B: Dimension (in) | 0.24 |
| B: Dimension (mm) | 6.1 |
| C: Height (in) | 0.63 |
| C: Height (mm) | 15.9 |
