Item # 4440
DC 68-2-M/M BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $1.25989 |
| EA | 25 | $1.10240 |
| EA | 50 | $0.97992 |
| EA | 100 | $0.88192 |
| EA | 200 | $0.80175 |
| EA | 500 | $0.73494 |
| EA | 1,000 | $0.67840 |
| EA | 2,000 | $0.62995 |
| EA | 5,000 | $0.58795 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge

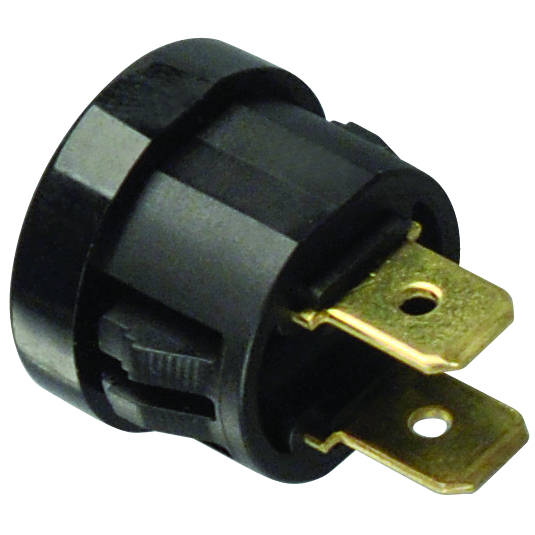

Item # 4440
DC 68-2-M/M BLACK
- UM: EA
- Weight: 0.0100
- Brand: HEYCO PRODUCTS
Specifications
| Description | DC 68-2-M/M |
| Terminal Type | Double Male, Non-polarized |
| Number of Poles | 1 |
| Terminal Width (in) | 0.25 |
| Terminal Width (mm) | 6.4 |
| A: Mounting Hole Diameter (in) | 0.687 |
| A: Mounting Hole Diameter (mm) | 17.4 |
| B: To Prevent Rotation (in) | 0.640 |
| B: To Prevent Rotation (mm) | 16.3 |
| C: Maximum Panel Thickness (mm) | 0.125 |
| C: Maximum Panel Thickness (in) | 3.2 |
| D: Overall Length (in) | 0.94 |
| D: Overall Length (mm) | 23.9 |
