Item # 4485

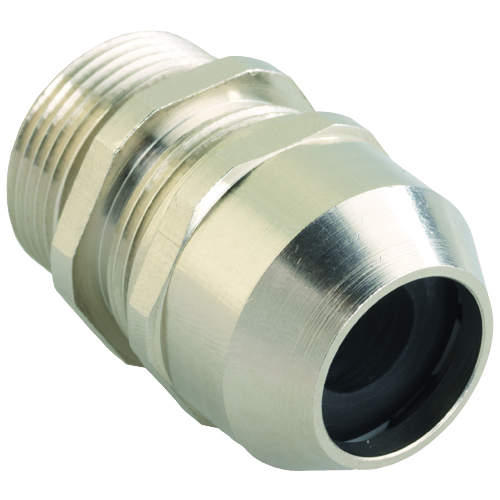

BRASS LTCGH M50-350
Click image to enlarge
Item # 4485
BRASS LTCGH M50-350
- UM: EA
- Weight: 0.6000
- Brand: HEYCO PRODUCTS
Specifications
| Description | BRASS LTCGH M50-350 |
| Cable Diameter Range (in) | .98 - 1.38 |
| Cable Diameter Range (mm) | 25.0 - 35.0 |
| Thread Size | M50 x 1.5 |
| A: Clearance Hole Diameter (in) | 1.99 |
| A: Clearance Hole Diameter (mm) | 50.5 |
| B: Maximum O.A. Length (in) | 2.17 |
| B: Maximum O.A. Length (mm) | 55.0 |
| C: Thread Length (in) | 0.59 |
| C: Thread Length (mm) | 15.0 |
| D: Wrenching Nut Flat Size (in) | 2.17 |
| D: Wrenching Nut Flat Size (mm) | 55.0 |
Documents
Suggested Related Products
- 2255
- BRASS LN M50
