Item # 4512
BRASS CG M16-80
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $7.86000 |
| EA | 25 | $6.48000 |
| EA | 50 | $5.56000 |
| EA | 100 | $4.98000 |
| EA | 200 | $4.59600 |
Add to Cart to Request Quote for Larger Qtys

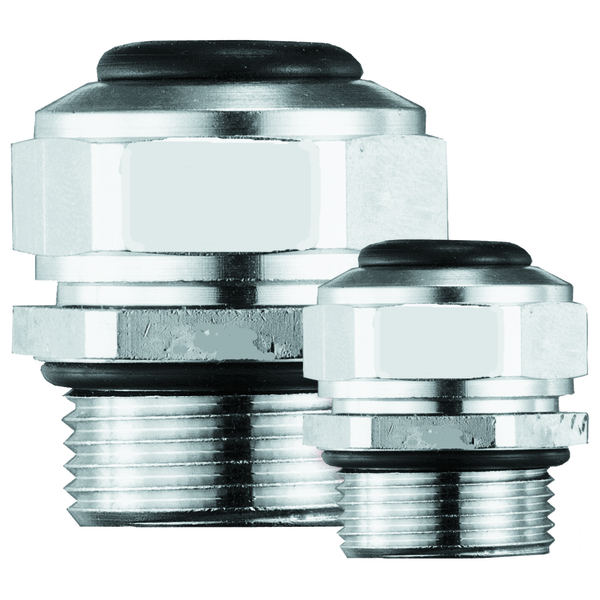

Click image to enlarge
Item # 4512
BRASS CG M16-80
- UM: EA
- Weight: 0.0600
- Brand: HEYCO PRODUCTS
Specifications
| Description | BRASS CG M16-80 |
| Cable Diameter Range (in) | .236 - .315 |
| Cable Diameter Range (mm) | 6.0 - 8.0 |
| Thread Size | M16 x 1.5 |
| Standard or Short Thread Length | Standard Thread |
| A: Clearance Hole Diameter (in) | 0.630 |
| A: Clearance Hole Diameter (mm) | 16.0 |
| B: Maximum O.A. Length (in) | 1.18 |
| B: Maximum O.A. Length (mm) | 30.0 |
| C: Thread Length (in) | 0.39 |
| C: Thread Length (mm) | 10.0 |
| D: Wrenching Nut Flat Size (in) | 0.71 |
| D: Wrenching Nut Flat Size (mm) | 18.0 |
Documents
Suggested Related Products
- 2247
- BRASS LN M16
Add to Cart to Get Quote
×
