Item # 9074

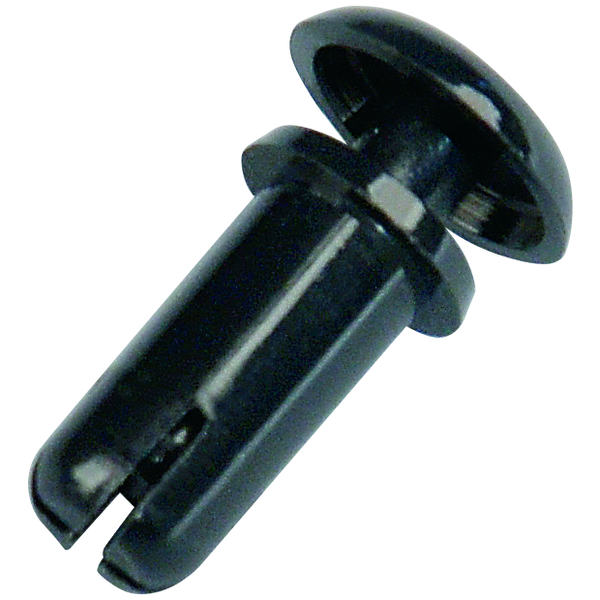

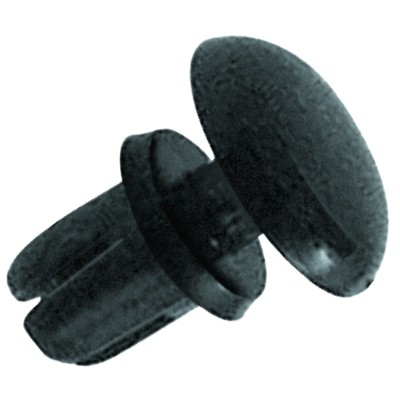

PR 201-138 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 100 | $0.22960 |
| EA | 200 | $0.20409 |
| EA | 500 | $0.18368 |
| EA | 1,000 | $0.16698 |
| EA | 2,000 | $0.15307 |
| EA | 4,000 | $0.14129 |
| EA | 8,000 | $0.13120 |
| EA | 12,000 | $0.12245 |
| EA | 16,000 | $0.11480 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 9074
PR 201-138 BLACK
- UM: EA
- Weight: 0.0008
- Brand: HEYCO PRODUCTS
Specifications
| Description | PR 201-138 |
| Color | Black |
| Mounting Hole Diameter (in) | 0.201 |
| Mounting Hole Diameter (mm) | 5.1 |
| Panel Thickness Range (in) | .14 - .18 |
| Panel Thickness Range (mm) | 3.5 - 4.6 |
| A: Length (in) | 0.26 |
| A: Length (mm) | 6.6 |
| B: Head Height (in) | 0.09 |
| B: Head Height (mm) | 2.3 |
| C: Head Diameter (in) | 0.35 |
| C: Head Diameter (mm) | 8.9 |
| Extraction Force (N) | 245 |
| Style | 1 |
Documents
×
