Item # 9403

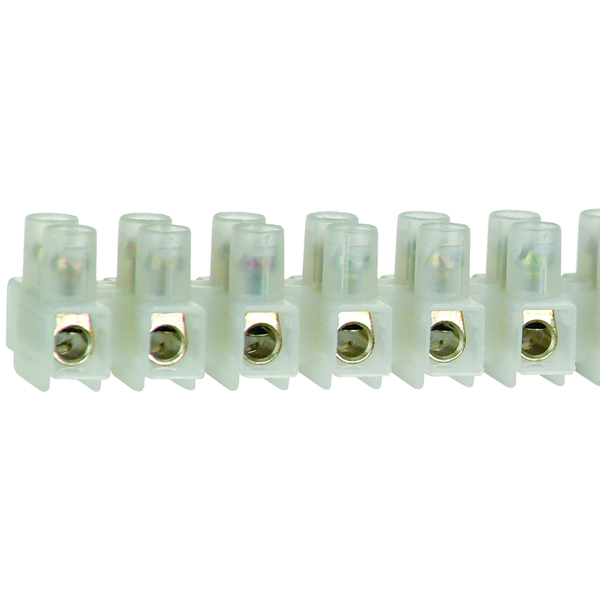

TB 2B WP-12P NATURAL
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $10.07185 |
| EA | 3 | $8.81287 |
| EA | 5 | $7.83366 |
| EA | 10 | $7.05029 |
| EA | 25 | $6.40936 |
| EA | 50 | $5.87525 |
| EA | 100 | $5.42330 |
| EA | 250 | $5.03592 |
| EA | 500 | $4.70020 |
| EA | 1,000 | $4.40643 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 9403
TB 2B WP-12P NATURAL
- UM: EA
- Weight: 0.1320
- Brand: HEYCO PRODUCTS
Specifications
| Description | TB 2B-WP-12P |
| Color | Natural |
| Body Style | Raised Base |
| Wire Size (AWG) | 8-14 |
| Wire Size (mm2) | 6 |
| Poles | 12 |
| Screws (Metric) | M 3.5 |
| A: Length (12 Poles) (in) | 5.26 |
| A: Length (12 Poles) (mm) | 133.5 |
| B: Width (in) | 0.87 |
| B: Width (mm) | 22.2 |
| C: Height (in) | 0.82 |
| C: Height (mm) | 20.8 |
| D: Dimension (in) | 0.17 |
| D: Dimension (mm) | 4.3 |
| E: Dimension (in) | 0.45 |
| E: Dimension (mm) | 11.5 |
| F: Dimension (in) | 0.15 |
| F: Dimension (mm) | 3.7 |
Documents
×
