Item # 9780

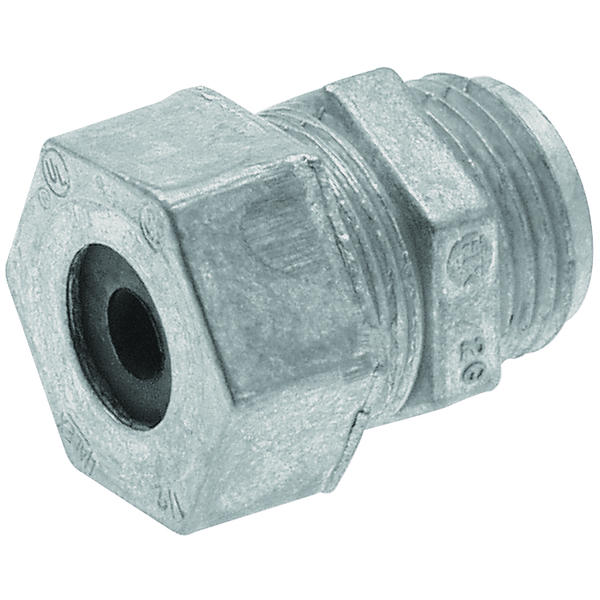

CG 22 3/4 500-625 CORD GRIP
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $6.30000 |
| EA | 10 | $6.00000 |
| EA | 50 | $4.90000 |
| EA | 100 | $3.79000 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 9780
CG 22 3/4 500-625 CORD GRIP
- UM: EA
- Weight: 0.1200
- Brand: HEYCO PRODUCTS
Specifications
| Description | CG 22 |
| Cable Diameter Range (in) | .500 - .625 |
| Cable Diameter Range (mm) | 12.7 - 15.9 |
| Thread Size | 3/4 NPT |
| A: Clearance Hole Diameter (in) | 1.109 |
| A: Clearance Hole Diameter (mm) | 28.2 |
| B: Sealing Nut Hex (in) | 1.218 |
| B: Sealing Nut Hex (mm) | 30.9 |
| C: Body Nut OD (in) | 1.187 |
| C: Body Nut OD (mm) | 30.2 |
| D: Overall Length (in) | 1.27 |
| D: Overall Length (mm) | 32.3 |
| E: Exposed Length (in) | 0.87 |
| E: Exposed Length (mm) | 22.1 |
Documents
Suggested Related Products
- 9801
- LN 3/4 DC
$0.41067 / EA
×
