Item # C2008
LTBP 500-063 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.58825 |
| EA | 50 | $0.52289 |
| EA | 100 | $0.47060 |
| EA | 200 | $0.42782 |
| EA | 500 | $0.39217 |
| EA | 1,000 | $0.36200 |
| EA | 2,000 | $0.33614 |
| EA | 5,000 | $0.31373 |
| EA | 10,000 | $0.29413 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # C2008
LTBP 500-063 BLACK
- UM: EA
- Weight: 0.0060
- Brand: HEYCO PRODUCTS
- HEYCo-molded™ Liquid Tight Break-Thru Plugs Item Number C2008 fits mounting hole diameter 0.500" (12.7 mm)
- These co-molded nylon and elastomer parts function as Liquid Tight Plugs with an IP 67/68 rating, yet can be pierced by round wire, cable or tubing to function as Liquid Tight Bushings with the same resulting IP 67/68 rating.
- Certified by UL under UL 635
- For use in panels as thin as .020" (0.5 mm) and as thick as .063" (1.6 mm).
- Provide liquid tight closure when used as a plug. When pierced, functions as a liquid tight bushing that converts raw edged holes to smooth, neat, insulated holes.

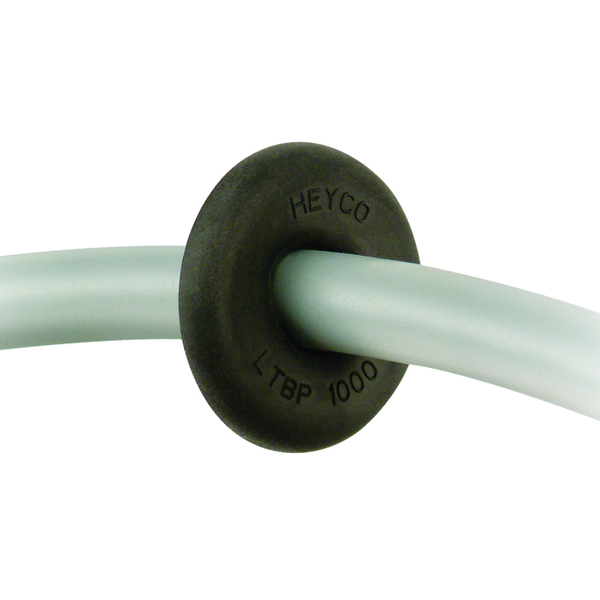

- Used as a liquid tight bushing, HEYCo-molded Liquid Tight Break-Thru Plugs insulate and mechanically protect electrical and telecommunications cable, tubing, hose, rope, and utility lines.
- Locking fingers snap into holes with fingertip pressure.
- Five locking finger steps in fractional increments up to the maximum panel thickness .063" (1.6 mm)
Specifications
| Description | LTBP 500-063 |
| Color | Black |
| Panel Thickness Range (in) | .020 - .063 |
| Panel Thickness Range (mm) | .5 - 1.6 |
| Mounting Hole Diameter (in) | 0.500 |
| Mounting Hole Diameter (mm) | 12.7 |
| Cable Diameter Range (in) | .080 - .200 |
| Cable Diameter Range (mm) | 2.0 - 5.1 |
| A: Head Diameter (in) | 0.92 |
| A: Head Diameter (mm) | 23.4 |
| B: Overall Height (in) | 0.32 |
| B: Overall Height (mm) | 8.1 |
