Item # EC-20
1-1/4" RED POLY CAP
Click image to enlarge
Item # EC-20
1-1/4" RED POLY CAP
- UM: EA
- Weight: 0.0068
- Brand: CAPLUGS
Specifications
| Material | Low-density polyethylene |
| Standard Color | Red |
| Applicable Specs | NAS 831 |

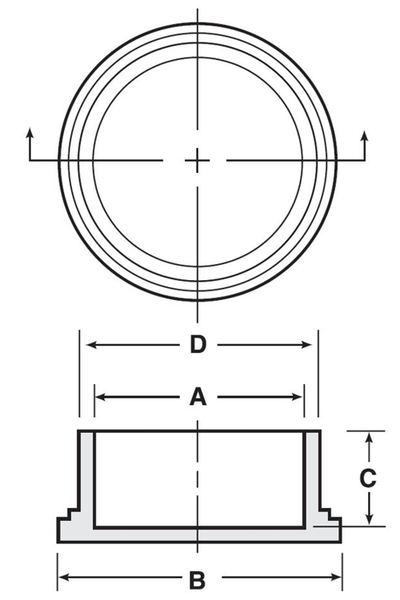

| To Cap Nominal Thread Size | 1-1/4 |
| A Dimension (in) | 1.231 |
| A Dimension (mm) | 31.27 |
| B Dimension (in) | 1.47 |
| B Dimension (mm) | 37.09 |
| C Dimension (in) | 0.56 |
| C Dimension (mm) | 14.22 |
| D Dimension (in) | 1.30 |
| D Dimension (mm) | 33.05 |
Documents
×
