Item # ED16AA-BK

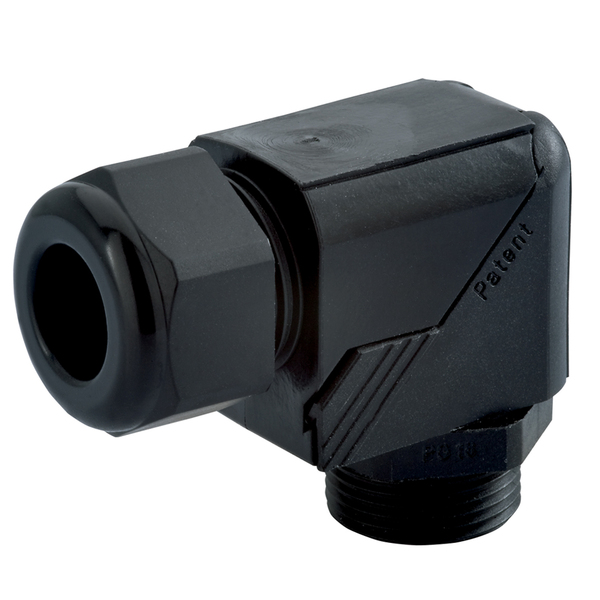

Dome Top Black Nylon PG16 Elbow Fitting
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $15.87200 |
| EA | 25 | $15.37600 |
| EA | 50 | $14.88000 |
| EA | 100 | $14.38400 |
| EA | 200 | $13.88800 |
| EA | 500 | $13.39200 |
| EA | 1,000 | $12.89600 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # ED16AA-BK
Dome Top Black Nylon PG16 Elbow Fitting
- UM: EA
- Weight: 0.0776
- Brand: SEALCON

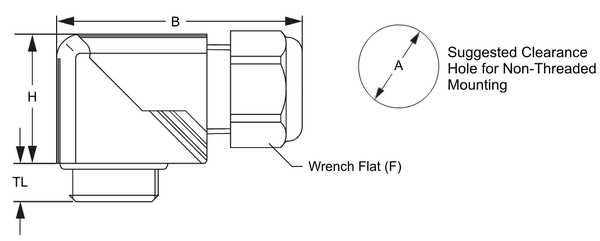

Specifications
| Cable Range (in) | .39 - .55 |
| Cable Range (mm) | 10 - 14 |
| Thread Type / Size | PG 16 |
| Color | Black |
| A: Clearance Hole (in) | 0.89 |
| A: Clearance Hole (mm) | 22.5 |
| B: Body Length (in) | 2.32 |
| B: Body Length (mm) | 59 |
| H: Height (in) | 1.28 |
| H: Height (mm) | 32.5 |
| TL: Thread Length (in) | 0.39 |
| TL: Thread Length (mm) | 10 |
| F: Wrenching Flats (in) | 1.06 |
| F: Wrenching Flats (mm) | 27 |
