Item # JB-1.2
Rooftop PV Junction Box- Asphalt Shingle
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $45.00000 |
| EA | 6 | $42.00000 |
| EA | 10 | $40.00000 |
| EA | 16 | $38.00000 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge

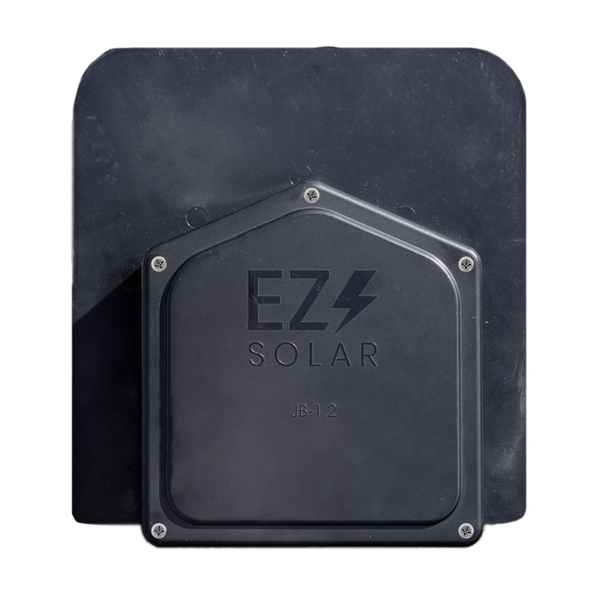

Item # JB-1.2
Rooftop PV Junction Box- Asphalt Shingle
- UM: EA
- Weight: 1.5000
- Brand: EZ SOLAR

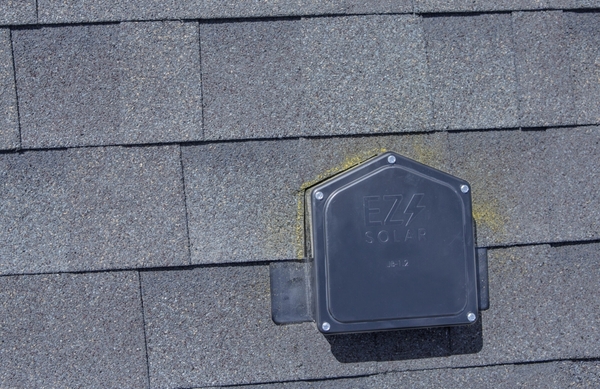

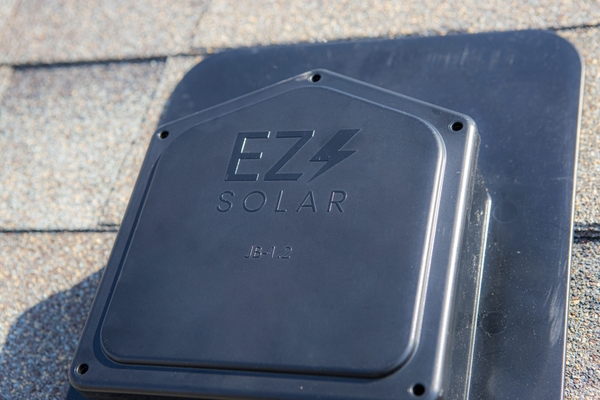

The EZ Solar JB-1.2™ offers a simplified solution for composition shingle and tile roofs. EZ Solar products provide installers with maximum flexibility and proven reliability of solar panels.
- Minimum number of components
- 100 cubic inches (Systems 7kW and smaller)
- Patented design
- Fast and easy installation

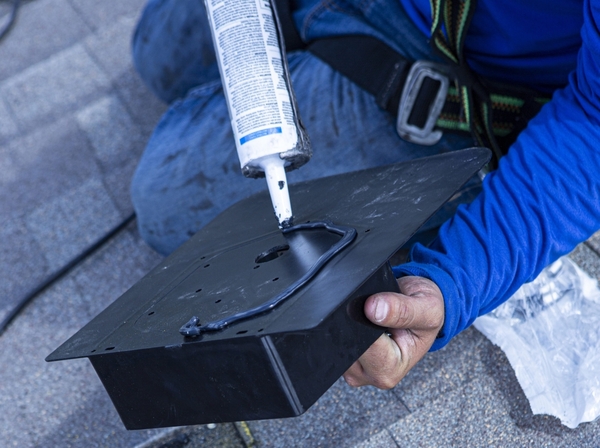

Installation Instructions:
Specifications
| Usage | Composition/Asphalt Shingle |
| Material | Polycarbonate w/ UV Inhibitors |

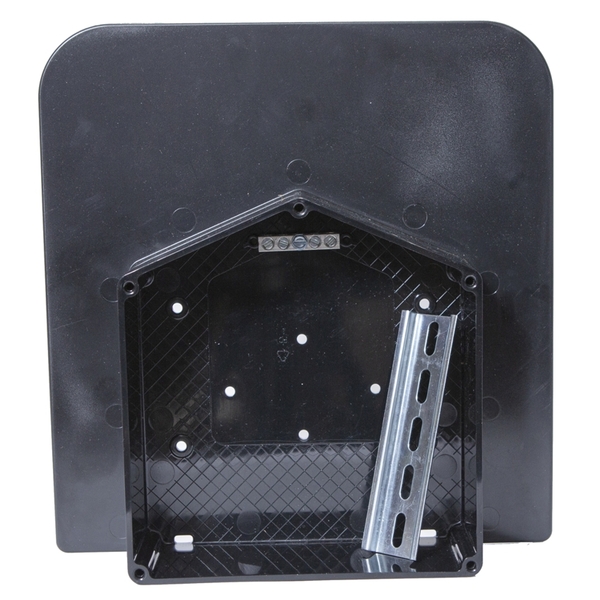

| Interior Space | 100 cubic inches |
| Maximum Voltage | 1,000 Volts |
| Maximum Current | 80 Amps |
| Allowable Wire | 14 AWG - 6 AWG |
| Enclosure Rating | Type 3R |
| Ambient Operating Conditions | -35 C - +75 C |
Documents
×
