Item # JB-3
Rooftop PV Junction Box - Rail Mount
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $45.00000 |
| EA | 5 | $39.50000 |
| EA | 10 | $37.25000 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # JB-3

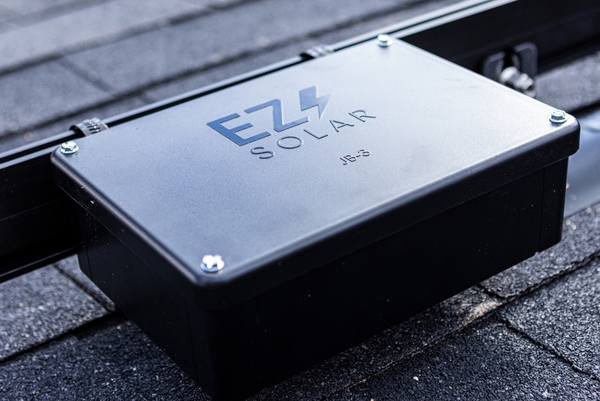

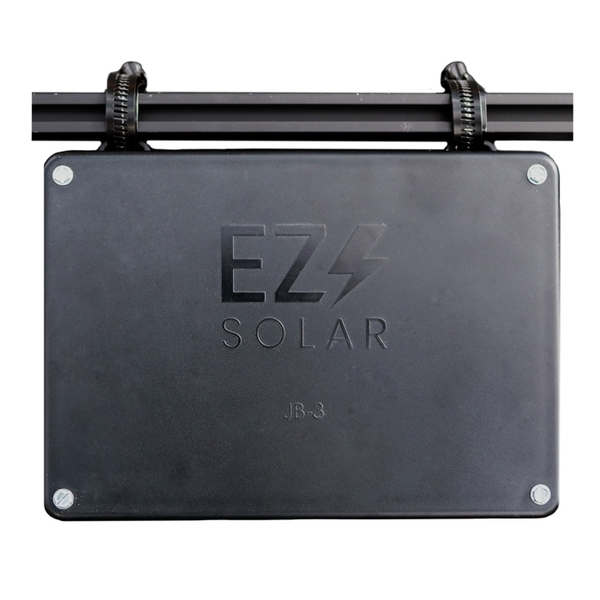

Rooftop PV Junction Box - Rail Mount
- UM: EA
- Weight: 1.4000
- Brand: EZ SOLAR

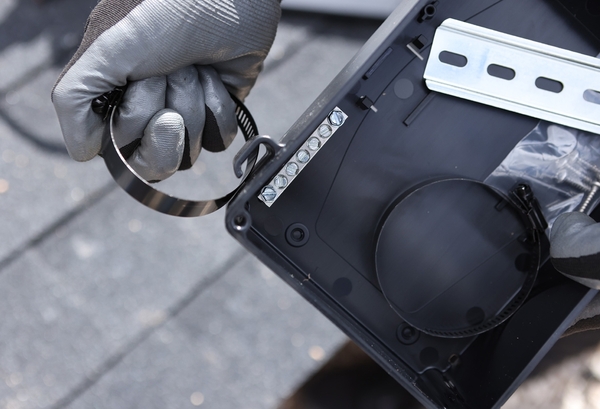

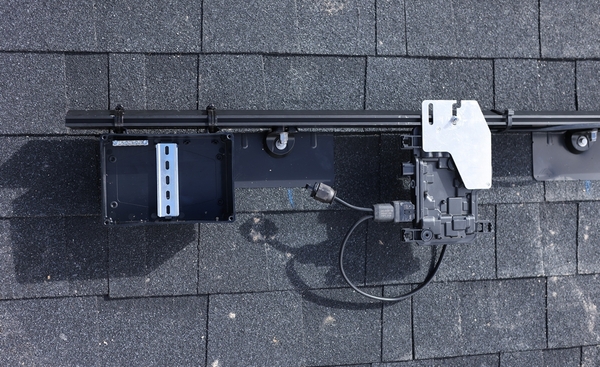

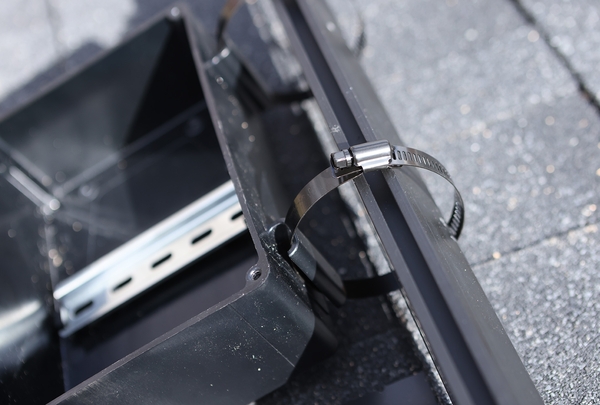

When you need a rail mounted junction box, you need EZ Solar's JB-3™! With flexible stainless steel clamps, you can mount to any rail, whether rounded or squared. Like other EZ products, it's fast and simple to install!

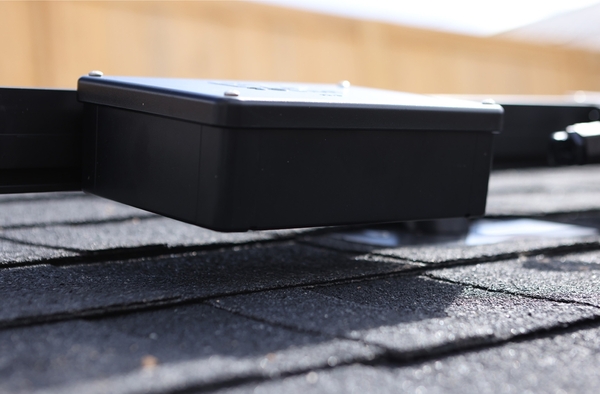

- Self Leveling
- Securely connects to rail
- Fast and easy installation
- No leaking
Installation Instructions:
Specifications
| Usage | Composition/Asphalt Shingle |
| Material | Polycarbonate w/ UV Inhibitors |
| Interior Space | 109 cubic inches |
| Maximum Voltage | 1,000 Volts |
| Maximum Current | 80 Amps |
| Allowable Wire | 14 AWG - 6 AWG |
| Enclosure Rating | Type 3R |
| Ambient Operating Conditions | -35 C - +75 C |
