Item # JB-M.884

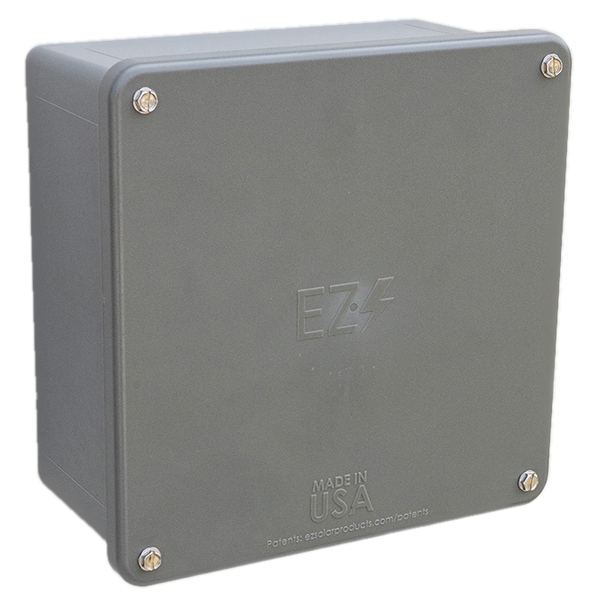

Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"

$47.58209 / EA

  • Qty Available: 26

Quantity Price Break

UM Qty Price
EA 1 $47.58209
EA 3 $45.54286
EA 10 $43.67123
EA 18 $41.40260

Add to Cart to Request Quote for Larger Qtys

JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
Click image to enlarge
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"
JB-M.884 Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"

Item # JB-M.884

Mamba 884 Polycarbonate Junction Box: 8" x 8" x 4.25"

  • UM: EA
  • Weight: 1.7000
  • Brand: EZ SOLAR

The first general duty junction box made for solar! Mamba works on any job, any place. Made from a Proprietary Polycarbonate Blend rather than PVC. Mamba is easy to install and cost-effective.

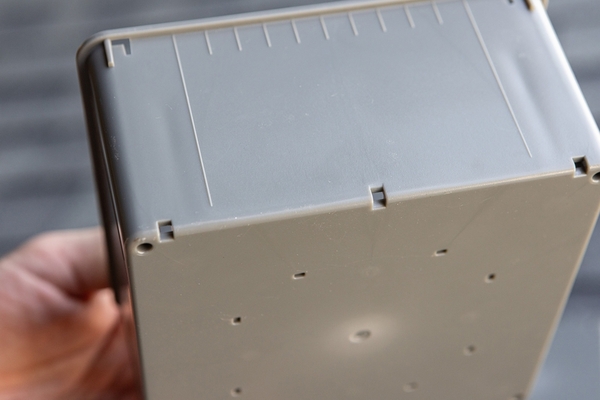

  • Weep Holes
  • Withstands Direct UV

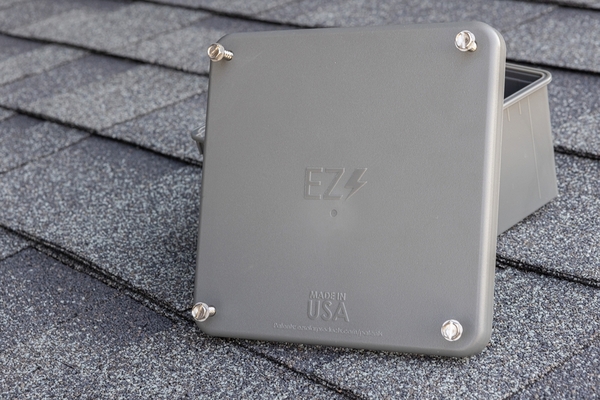

  • Captive Lid Screws
  • Easily Mounts on Wall or Pole

Installation Instructions:


Specifications

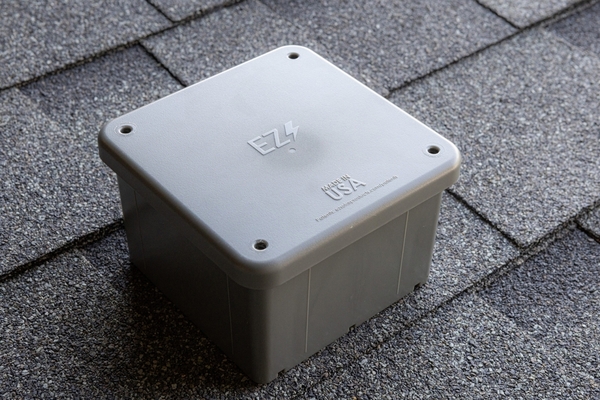

Usage Asphalt Shingle/Wall or Pole
Material Polycarbonate

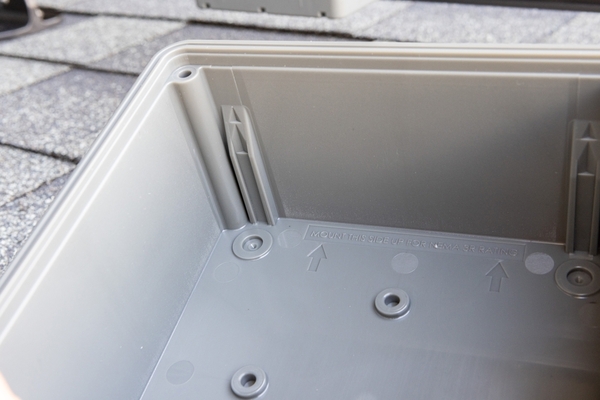

Interior Space 384 cubic inches
Maximum Voltage 1,500 Volts
Maximum Current 120 Amps
Allowable Wire 14 AWG - 2/0 AWG
Enclosure Rating Type 3R
Ambient Operating Conditions -35 C - +75 C

Documents
