Item # M3204

LTCG PG-36 BLACKw/M9146 NUT

$8.52794 / EA

  • Qty Available: 66

Quantity Price Break

UM Qty Price
EA 1 $8.52794
EA 3 $7.58040
EA 5 $6.82236
EA 10 $6.20214
EA 25 $5.68530
EA 50 $5.24797
EA 100 $4.87311
EA 200 $4.54824
EA 500 $4.26397

Add to Cart to Request Quote for Larger Qtys

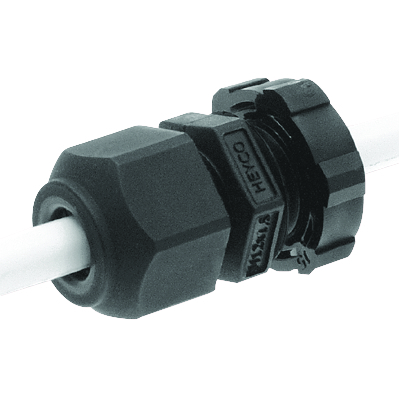

M3204 LTCG PG-36 BLACKw/M9146 NUT
Click image to enlarge
M3204 LTCG PG-36 BLACKw/M9146 NUT

Item # M3204

LTCG PG-36 BLACKw/M9146 NUT

  • UM: EA
  • Weight: 0.2000
  • Brand: HEYCO PRODUCTS

Specifications

Description LTCG 36
Color Black
Cable Diameter Range (in) .875 - 1.260
Cable Diameter Range (mm) 22.2 - 32.0
Thread Type / Size PG 36
Locknut Included
A: Clearance Hole Diameter (in) 1.880
A: Clearance Hole Diameter (mm) 47.6
B: Maximum O.A. Length (in) 2.39
B: Maximum O.A. Length (mm) 60.7
C: Thread Length (in) 0.47
C: Thread Length (mm) 11.9
D: Wrenching Nut Thickness (in) 0.31
D: Wrenching Nut Thickness (mm) 7.9
E: Wrenching Nut Flat Size (in) 2.05
E: Wrenching Nut Flat Size (mm) 52.7
Item Qty
M4774
LTCG PG-36 BLACK-NO NUT 		1
M9146
NLN PG 36 BLACK 		1
