Item # M3231GAE
LTCG 1/2 BLK 2-5.2MM W/2250
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $2.32970 |
| EA | 100 | $1.77410 |
| EA | 200 | $1.42470 |
| EA | 500 | $1.20070 |
| EA | 1,000 | $1.07520 |
Add to Cart to Request Quote for Larger Qtys

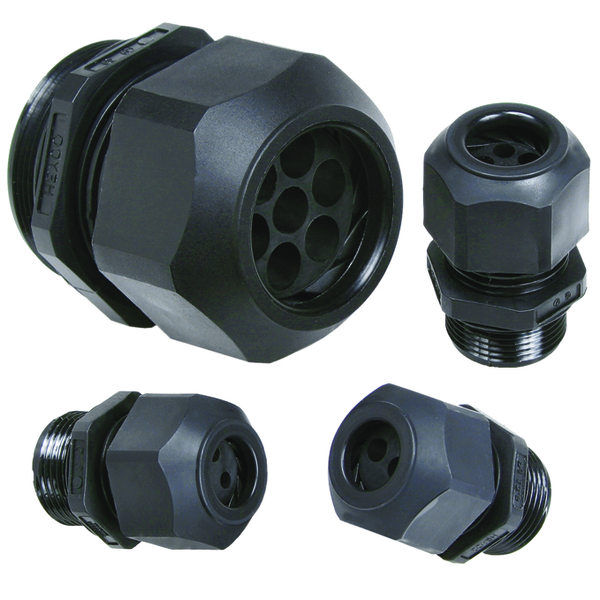

Click image to enlarge
Item # M3231GAE
LTCG 1/2 BLK 2-5.2MM W/2250
- UM: EA
- Weight: 0.0400
- Brand: HEYCO PRODUCTS
Specifications
| Description | LTCG 1/2 |
| Color | Black |
| Hole Size (mm) | 5.2 |
| Number of Holes | 2 |
| Thread Type / Size | 1/2 NPT |
| Locknut | Assembled Metal Locknut Included |
| A: Clearance Hole Diameter (in) | 0.875 |
| A: Clearance Hole Diameter (mm) | 22.2 |
| B: Maximum O.A. Length (in) | 1.70 |
| B: Maximum O.A. Length (mm) | 43.2 |
| C: Thread Length (in) | 0.61 |
| C: Thread Length (mm) | 15.5 |
| D: Wrenching Nut Thickness (in) | 0.21 |
| D: Wrenching Nut Thickness (mm) | 5.3 |
| E: Wrenching Nut Flat Size (in) | 0.98 |
| E: Wrenching Nut Flat Size (mm) | 24.9 |
Documents
×
