Item # M3234GDA-SM
SMCG 3/4NPT BLK 2-6.1 x 9.7MM 1-3.3MM W/2251
$3.65060 / EA
- Qty Available: 1,140
- Stock at Distribution Center: 8,588
- Standard Pkg Qty: 100
- Log In Here
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $3.65060 |
| EA | 50 | $2.78010 |
| EA | 100 | $2.23250 |
| EA | 200 | $1.88150 |
| EA | 500 | $1.68490 |
Add to Cart to Request Quote for Larger Qtys

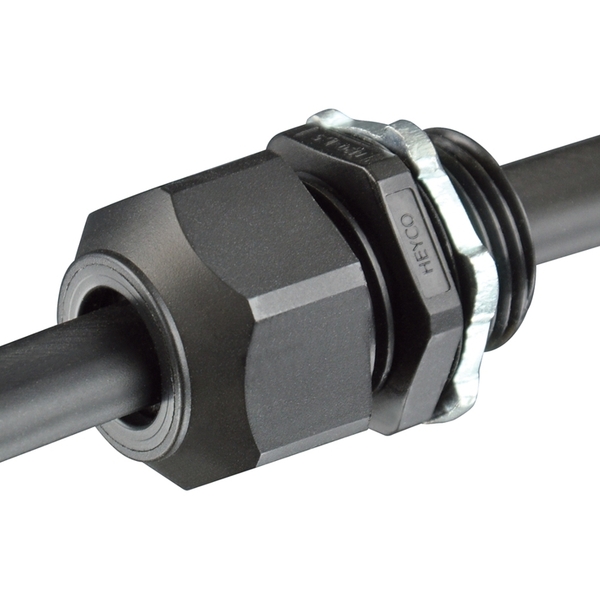

Click image to enlarge
Item # M3234GDA-SM
SMCG 3/4NPT BLK 2-6.1 x 9.7MM 1-3.3MM W/2251
- UM: EA
- Weight: 0.0800
- Brand: HEYCO PRODUCTS
Specifications
| Description | SMCG 3/4 6.1x9.7MM 1-3.3MM |
| Color | Black |
| Gland Type | Q Cables plus Ground / Break-Thru Skinned Over Gland |
| Hole Size (mm) | 6.1 x 9.7 & 3.3 |
| Number of Holes | 2 |
| Thread Type / Size | 3/4 NPT |
| Locknut | Metal Locknut Included |
| A: Clearance Hole Diameter (in) | 1.040 |
| A: Clearance Hole Diameter (mm) | 26.4 |
| B: Maximum O.A. Length (in) | 2.0 |
| B: Maximum O.A. Length (mm) | 50.8 |
| C: Thread Length (in) | 0.62 |
| C: Thread Length (mm) | 15.7 |
| D: Wrenching Nut Thickness (in) | 0.25 |
| D: Wrenching Nut Thickness (mm) | 6.4 |
| E: Wrenching Nut Flat Size (in) | 1.30 |
| E: Wrenching Nut Flat Size (mm) | 33.0 |
