Item # M3321GDF-SM
SMCG 2 NPT BLK 8-10.3MM W/9808
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $41.69857 |
| EA | 5 | $36.48625 |
| EA | 10 | $32.43222 |
| EA | 25 | $28.06635 |
| EA | 50 | $24.32417 |
| EA | 100 | $22.45308 |
Add to Cart to Request Quote for Larger Qtys

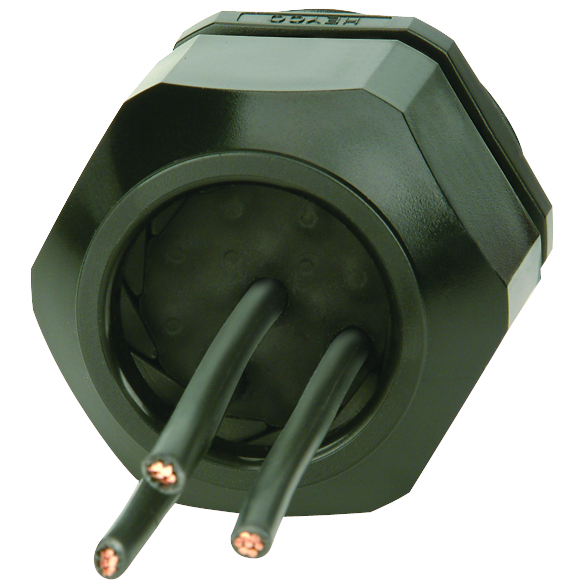

Click image to enlarge
Item # M3321GDF-SM
SMCG 2 NPT BLK 8-10.3MM W/9808
- UM: EA
- Weight: 0.4400
- Brand: HEYCO PRODUCTS
Specifications
| Description | SMCG 2 |
| Color | Black |
| Hole Size (mm) | 10.3 |
| Number of Holes | 8 |
| Thread Type / Size | 2 NPT |
| Locknut | Metal Locknut Included |
| A: Clearance Hole Diameter (in) | 2.40 |
| A: Clearance Hole Diameter (mm) | 60.8 |
| B: Maximum O.A. Length (in) | 2.93 |
| B: Maximum O.A. Length (mm) | 74.3 |
| C: Thread Length (in) | 0.79 |
| C: Thread Length (mm) | 20.1 |
| D: Wrenching Nut Thickness (in) | 0.42 |
| D: Wrenching Nut Thickness (mm) | 10.7 |
| E: Wrenching Nut Flat Size (in) | 2.73 |
| E: Wrenching Nut Flat Size (mm) | 69.3 |
