Item # M3800
LTSCG 500 BLACK

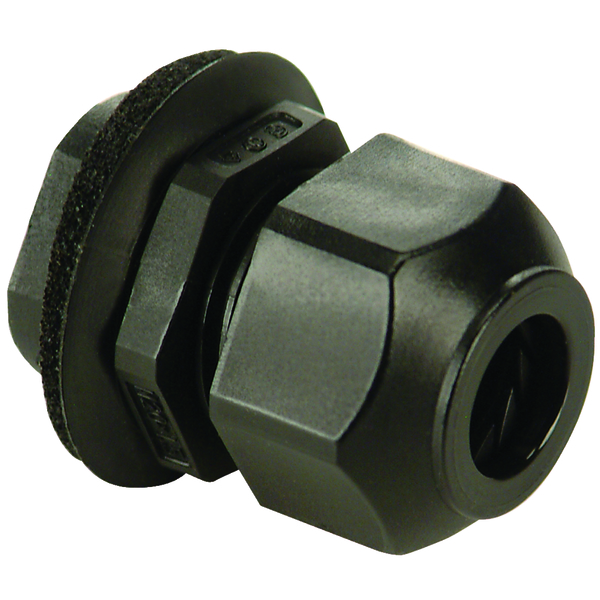

Click image to enlarge
Item # M3800
LTSCG 500 BLACK
- UM: EA
- Weight: 0.0100
- Brand: HEYCO PRODUCTS
Specifications
| Description | LTSCG 500 |
| Color | Black |
| Cable Diameter Range (in) | .115 - .250 |
| Cable Diameter Range (mm) | 2.9 - 6.4 |
| A: Mounting Hole Diameter (in) | 0.500 |
| A: Mounting Hole Diameter (mm) | 12.7 |
| B: To Prevent Rotation (in) | 0.450 |
| B: To Prevent Rotation (mm) | 11.4 |
| C: Max. O.A. Length (in) | 1.21 |
| C: Max. O.A. Length (mm) | 30.7 |
