Item # M4542

RLTCG PG-13,5 90 BLKw/3171 NUT

$3.94963 / EA

  • Qty Available: 4,000

Quantity Price Break

UM Qty Price
EA 1 $3.94963
EA 10 $3.51078
EA 25 $3.15971
EA 50 $2.87246
EA 100 $2.63309
EA 200 $2.43054
EA 500 $2.35799
EA 1,000 $2.25693
EA 2,000 $2.16418
EA 4,000 $2.10647

Add to Cart to Request Quote for Larger Qtys

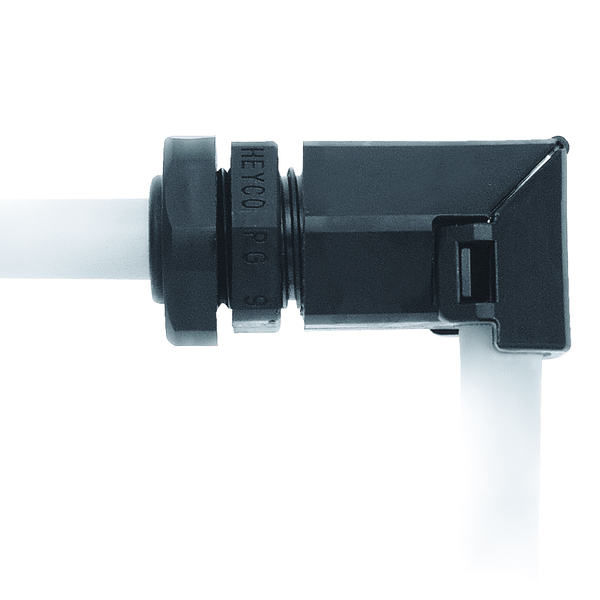

M4542 RLTCG PG-13,5 90 BLKw/3171 NUT
Click image to enlarge
M4542 RLTCG PG-13,5 90 BLKw/3171 NUT

Item # M4542

RLTCG PG-13,5 90 BLKw/3171 NUT

  • UM: EA
  • Weight: 0.0600
  • Brand: HEYCO PRODUCTS

Specifications

Description RLTCG 13.5 90
Color Black
Cable Diameter Range (in) .095 - .290
Cable Diameter Range (mm) 2.4 - 7.4
Thread Size PG 13.5
Locknut Included
A: Clearance Hole Diameter (in) 0.804
A: Clearance Hole Diameter (mm) 20.4
B: Right Angle Height (in) 1.06
B: Right Angle Height (mm) 26.9
C: Max. O.A. Length (Closed) (in) 2.21
C: Max. O.A. Length (Closed) (mm) 56.1
D: Thread Length (in) 0.41
D: Thread Length (mm) 10.4
E: Sealing Nut Length (in) 1.38
E: Sealing Nut Length (mm) 35.1
F: Wrenching Nut Flat Size (in) 0.98
F: Wrenching Nut Flat Size (mm) 24.9
Item Qty
3171
NLN PG 13.5 BLACK 		1
M4556
RLTCG PG-13,5 90 BLACK-NO NUT 		1
