Item # S6255
LTPVCC YELLOW BULK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.37115 |
| EA | 25 | $0.35091 |
| EA | 50 | $0.33276 |
| EA | 100 | $0.31129 |
| EA | 500 | $0.29692 |
| EA | 1,000 | $0.29242 |
| EA | 5,000 | $0.28382 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # S6255
LTPVCC YELLOW BULK
- UM: EA
- Weight: 0.0340
- Brand: HEYCO PRODUCTS

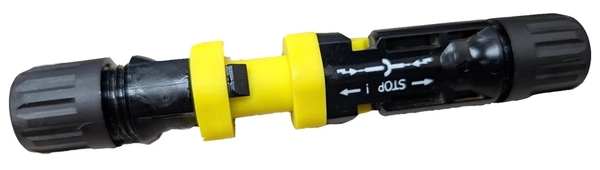

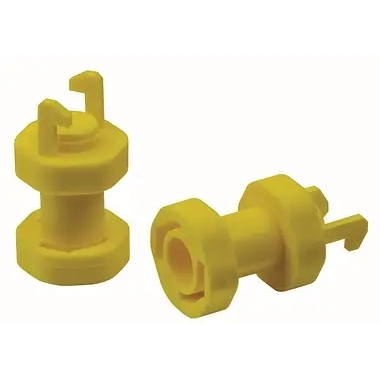

Heyco® Liquid Tight PV Connector Cap
- All-in-one solution to protecting the exposed end of any unsecured 4 mm PV connector.

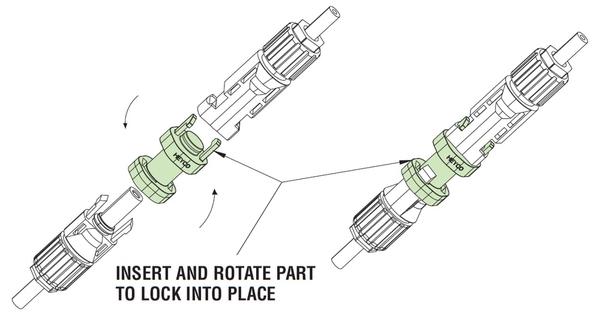

- Simple push-in with quarter-turn feature keeps connector cap in place.
- Plugs in to male or female end of unsecured 4 mm PV connector.
- Protects unused and exposed 4 mm PV connectors from liquids, insects and dust particulate until ready for final installation.
- Meets a minimum of IPX4 on all 4 mm PV connectors on the market.
- Meets IP68 for the most popular 4 mm PV connector on the market, the Staubli MC4.
- Reusable.
Specifications
| Packaging | Bulk |
| Color | Yellow |
| Material | Heat Stable, UV Rated Nylon 6/6 |
| Length (in) | 1.43 |
| Length (mm) | 36.3 |
| Width (in) | .080 - .085 |
| Width (mm) | 20.3 - 21.6 |
Documents
×
