Item # S6479
SUNRUNNER 90-4 CLIP BULK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.99680 |
| EA | 50 | $0.83067 |
| EA | 100 | $0.80387 |
| EA | 200 | $0.76677 |
| EA | 500 | $0.73294 |
| EA | 1,000 | $0.71200 |
| EA | 2,000 | $0.69222 |
| EA | 6,000 | $0.65579 |
| EA | 12,000 | $0.63897 |
| EA | 24,000 | $0.62300 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge

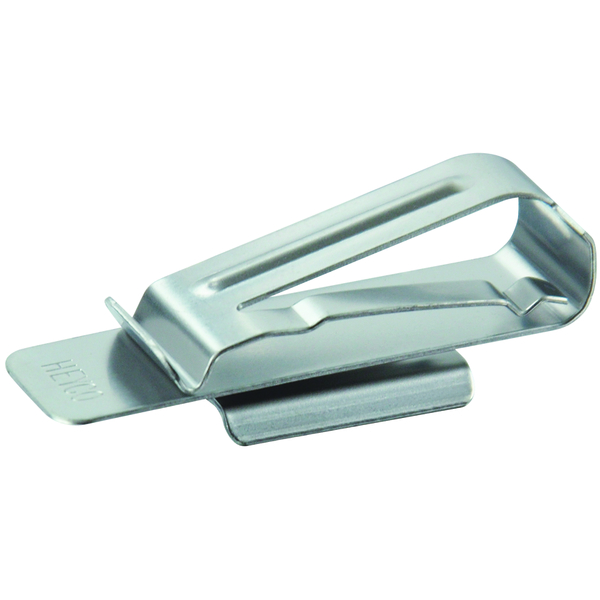

Item # S6479
SUNRUNNER 90-4 CLIP BULK
- UM: EA
- Weight: 0.0190
- Brand: HEYCO PRODUCTS
Specifications
| Description | SunRunner 90-4 - Four Wire Clip |
| Packaging | Bulk |
| Material | .020" thick heat treated 410 stainless steel |
| Panel Thickness Clamping Range (in) | .06 - .13 |
| Panel Thickness Clamping Range (mm) | 1.4 - 3.2 |
| Wire Dia. Range Maximum (1) Wire (in) | .20 - .30 each cable |
| Wire Dia. Range Maximum (1) Wire (mm) | 5.1 - 7.6 each cable |
| Footprint A x B (in) | .56 x 1.61 |
| Footprint A x B (mm) | 14.2 x 40.9 |
| C: Overall Height (in) | 0.36 |
| C: Overall Height (mm) | 9.1 |
