Item # S6593
SUNRUNNER NO FLANGE-14 BULK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.80927 |
| EA | 100 | $0.76741 |
| EA | 200 | $0.74183 |
| EA | 500 | $0.71790 |
| EA | 1,000 | $0.65456 |
| EA | 2,000 | $0.63586 |
| EA | 5,000 | $0.61819 |
| EA | 10,000 | $0.61819 |
| EA | 25,000 | $0.59347 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge

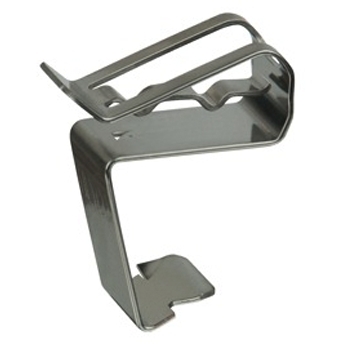

Item # S6593
SUNRUNNER NO FLANGE-14 BULK
- UM: EA
- Weight: 0.0160
- Brand: HEYCO PRODUCTS
Fits 13 mm to 15.3 mm panel flange widths, i.e. VSUN 132 and 144 cell panels and others.
Specifications
| Packaging | Bulk |
| Material | .025" thick 304 stainless steel |
| Panel Width Clamping Range (in) | .51 - .60 |
| Panel Width Clamping Range (mm) | 13.0 - 15.3 |
| Wire Dia. Range Maximum (2) Wires (in) | .20 - .33 each cable |
| Wire Dia. Range Maximum (2) Wires (mm) | 5.1 - 8.4 each cable |
| Footprint A x B (in) | .97 x .50 |
| Footprint A x B (mm) | 24.6 x 12.7 |
| C: Overall Height (in) | 1.01 |
| C: Overall Height (mm) | 25.6 |
Documents
×
