Item # 1497
SR 31-2 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.32657 |
| EA | 100 | $0.26125 |
| EA | 200 | $0.18661 |
| EA | 500 | $0.16328 |
| EA | 1,000 | $0.13063 |
| EA | 2,000 | $0.11875 |
| EA | 5,000 | $0.10886 |
| EA | 10,000 | $0.10048 |
| EA | 25,000 | $0.09331 |
| EA | 35,000 | $0.08708 |
Add to Cart to Request Quote for Larger Qtys

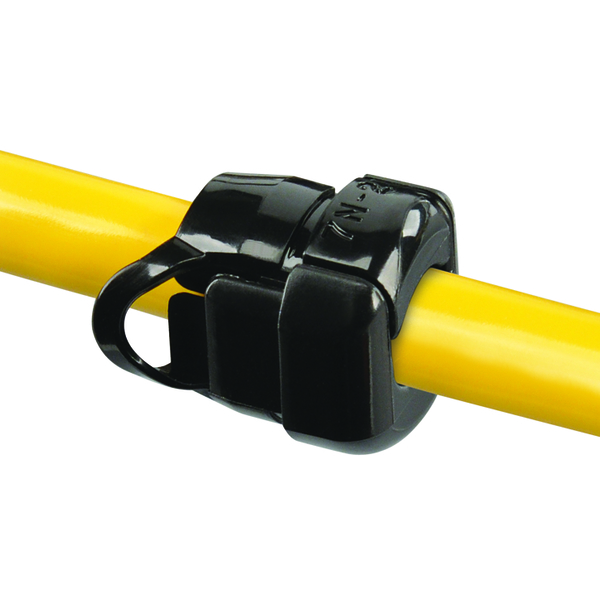

Click image to enlarge
Item # 1497
SR 31-2 BLACK
- UM: EA
- Weight: 0.0108
- Brand: HEYCO PRODUCTS
Specifications
| Description | SR 31-2 |
| Color | Black |
| Will Fit Cables UL Type | SPT-3 |
| AWG / Conductors | See Datasheet |
| Will Fit Cables Approx Size (in) | .32 x .65 |
| Will Fit Cables Approx Size (mm) | 8.1 x 16.5 |
| A: Mounting Hole Diameter (in) | 0.875 |
| A: Mounting Hole Diameter (mm) | 22.2 |
| B: To Prevent Rotation (in) | 0.835 |
| B: To Prevent Rotation (mm) | 21.2 |
| Panel Thickness (in) | 0.125 |
| Panel Thickness (mm) | 3.2 |
| C: Body Length (in) | 0.812 |
| C: Body Length (mm) | 20.6 |
