Item # 2020
SB 375-3 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.11264 |
| EA | 100 | $0.09011 |
| EA | 500 | $0.06437 |
| EA | 1,000 | $0.04506 |
| EA | 2,000 | $0.04096 |
| EA | 5,000 | $0.03755 |
| EA | 7,500 | $0.03466 |
| EA | 15,000 | $0.03218 |
| EA | 30,000 | $0.03004 |
| EA | 60,000 | $0.02816 |
Add to Cart to Request Quote for Larger Qtys

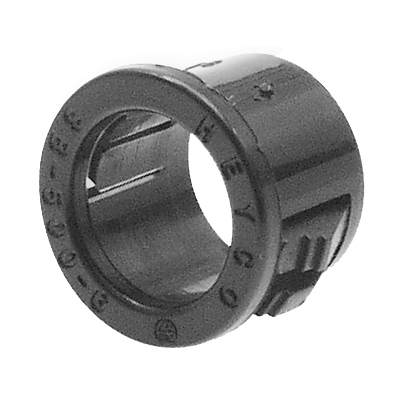

Click image to enlarge
Item # 2020
SB 375-3 BLACK
- UM: EA
- Weight: 0.0012
- Brand: HEYCO PRODUCTS
- Snap Bushing Item Number 2020 fits mounting hole diameter 0.375" (9.5 mm)
- Convert raw-edged holes to smooth, neat, insulated holes.
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
- Locking fingers snap into holes with fingertip pressure.
- Locking fingers in fractional increments up to the maximum panel thickness .125 in (3.2 mm) thick.
- Withstand a push back force of 35 pounds.
Specifications
| Description | SB 375-3 |
| Color | Black |
| Panel Thickness Max. (in) | 0.125 |
| Panel Thickness Max. (mm) | 3.2 |
| Mounting Hole Diameter (in) | 0.375 |
| Mounting Hole Diameter (mm) | 9.5 |
| A: Inside Diameter (in) | 0.19 |
| A: Inside Diameter (mm) | 4.8 |
| B: Head Diameter (in) | 0.47 |
| B: Head Diameter (mm) | 11.9 |
| C: Overall Height (in) | 0.41 |
| C: Overall Height (mm) | 10.3 |
