Item # 2166
SB 1093-15 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.20027 |
| EA | 100 | $0.16022 |
| EA | 200 | $0.11444 |
| EA | 500 | $0.08901 |
| EA | 1,000 | $0.08011 |
| EA | 2,000 | $0.07283 |
| EA | 4,000 | $0.06676 |
| EA | 8,000 | $0.06162 |
| EA | 24,000 | $0.05722 |
| EA | 48,000 | $0.05341 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 2166
SB 1093-15 BLACK
- UM: EA
- Weight: 0.0055
- Brand: HEYCO PRODUCTS

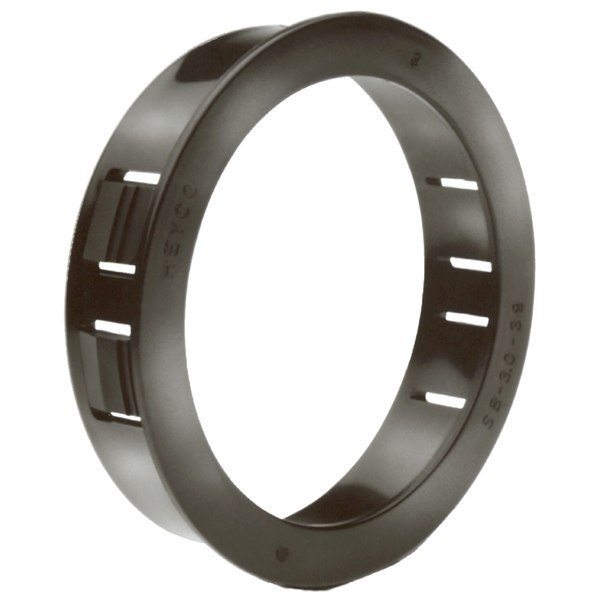

- Snap Bushing Item Number 2166 fits mounting hole diameter 1.093-1.125" (27.8-28.6 mm)
- Convert raw-edged holes to smooth, neat, insulated holes.
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines.
- Locking fingers snap into holes with fingertip pressure.
- Locking fingers in fractional increments up to the maximum panel thickness .125 in (3.2 mm) thick.
- Withstand a push back force of 35 pounds.
Specifications
| Description | SB 1093-15 |
| Color | Black |
| Panel Thickness Max. (in) | 0.125 |
| Panel Thickness Max. (mm) | 3.2 |
| Mounting Hole Diameter (in) | 1.093-1.125 |
| Mounting Hole Diameter (mm) | 27.8-28.6 |
| A: Inside Diameter (in) | 0.94 |
| A: Inside Diameter (mm) | 23.8 |
| B: Head Diameter (in) | 1.22 |
| B: Head Diameter (mm) | 30.9 |
| C: Overall Height (in) | 0.45 |
| C: Overall Height (mm) | 11.5 |
