Item # 2552
S 875-9 BLACK
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $0.16943 |
| EA | 500 | $0.13178 |
| EA | 1,000 | $0.09883 |
| EA | 2,000 | $0.09123 |
| EA | 5,000 | $0.08471 |
| EA | 10,000 | $0.07907 |
| EA | 20,000 | $0.07413 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # 2552
S 875-9 BLACK
- UM: EA
- Weight: 0.0062
- Brand: HEYCO PRODUCTS

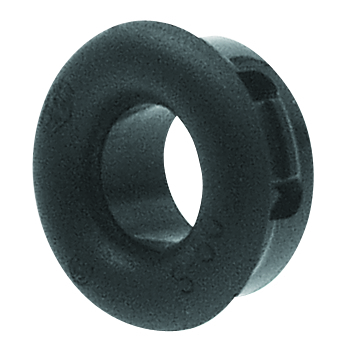

- Snap-In Smooth Bore Bushing Item Number 2552 fits mounting hole diameter 0.875" (22.3 mm)
- Extra internal insulating sleeve creates a smooth bore and prevents locking fingers from protruding into the ID of the Bushing.
- Large radius exit hole.
- Used to protect through-holes. Eliminate sharp edges so wires are protected.
- Absorb vibration, and cushion and insulate wires.
- Can be used as bushing for rotating shafts.
- Bushing inserts into mounting hole with fingertip pressure.
Specifications
| Description | S 875-9 |
| Color | Black |
| Panel Thickness Max. (in) | 0.125 |
| Panel Thickness Max. (mm) | 3.2 |
| Mounting Hole Diameter (in) | 0.875 |
| Mounting Hole Diameter (mm) | 22.3 |
| A: Inside Diameter (in) | 0.56 |
| A: Inside Diameter (mm) | 14.2 |
| B: Head Diameter (in) | 0.97 |
| B: Head Diameter (mm) | 24.6 |
| C: Overall Height (in) | 0.52 |
| C: Overall Height (mm) | 13.1 |
