Item # M5013

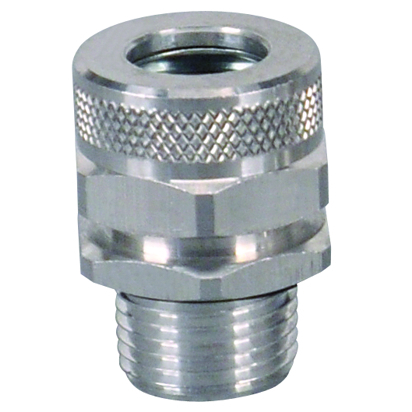

AL CG NPT 1/2-375-1
Quantity Price Break
| UM | Qty | Price |
|---|---|---|
| EA | 1 | $12.08000 |
| EA | 25 | $9.96000 |
| EA | 50 | $8.55000 |
| EA | 100 | $7.66000 |
| EA | 200 | $7.06800 |
Add to Cart to Request Quote for Larger Qtys
Click image to enlarge
Item # M5013
AL CG NPT 1/2-375-1
- UM: EA
- Weight: 0.0550
- Brand: HEYCO PRODUCTS
Specifications
| Description | AL CG NPT 1/2-375-1 |
| Cable Diameter Range (in) | .312 - .375 |
| Cable Diameter Range (mm) | 7.9 - 9.5 |
| Thread Size | NPT 1/2 |
| A: Clearance Hole Diameter (in) | 0.88 |
| A: Clearance Hole Diameter (mm) | 22.4 |
| B: Maximum O.A. Length (in) | 1.38 |
| B: Maximum O.A. Length (mm) | 35.1 |
| C: Thread Length (in) | 0.44 |
| C: Thread Length (mm) | 11.2 |
| D: Wrenching Flat Size (in) | 0.88 |
| D: Wrenching Flat Size (mm) | 22.4 |
